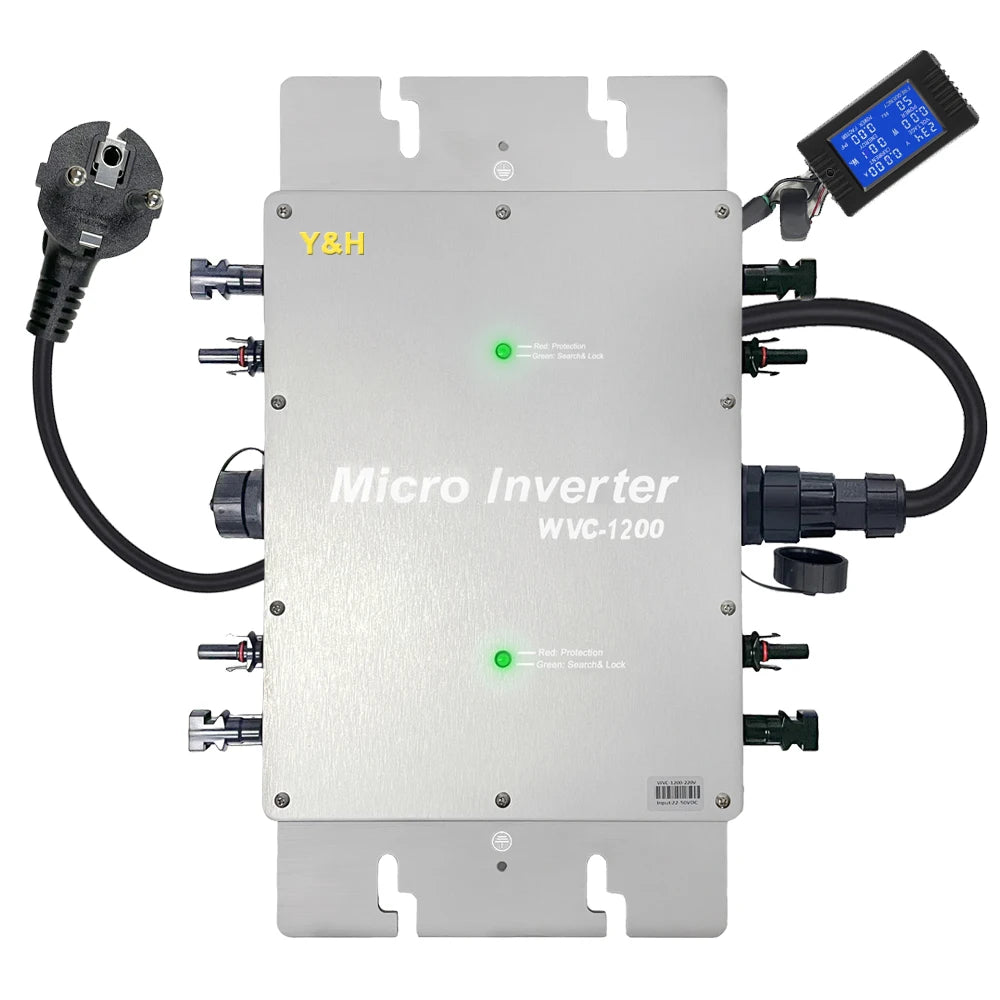

WVC series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology. The inverter output power can provide load priority use, extra electricity to the grid, Efficiently turns sunlight into clean and green power.

Features:

1.IP65 waterproof appearance design（Installed at the bottom of the Solar panel）

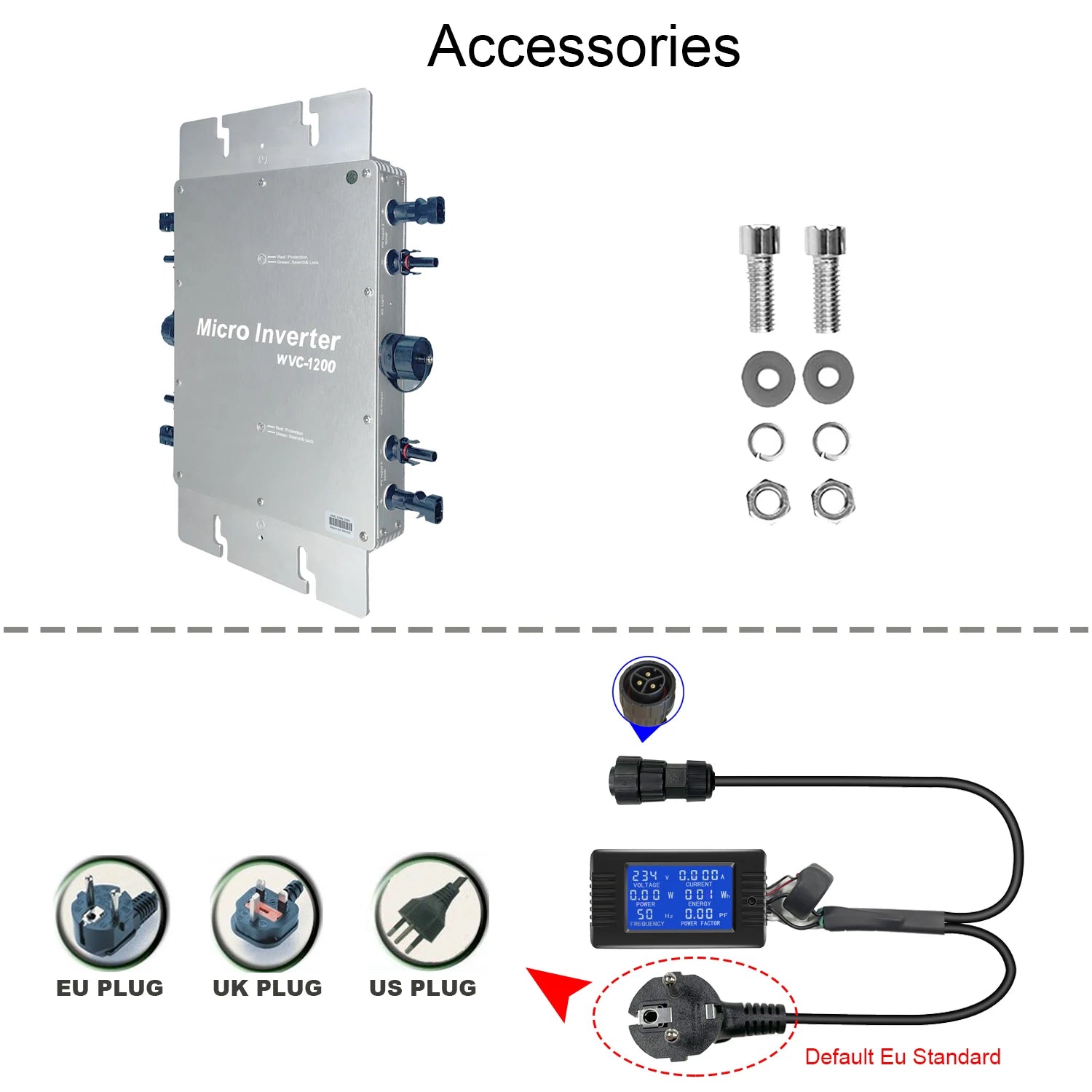

2.AC data monitoring display screen.

3.Built-in high performance maximum power point tracking function(MPPT)

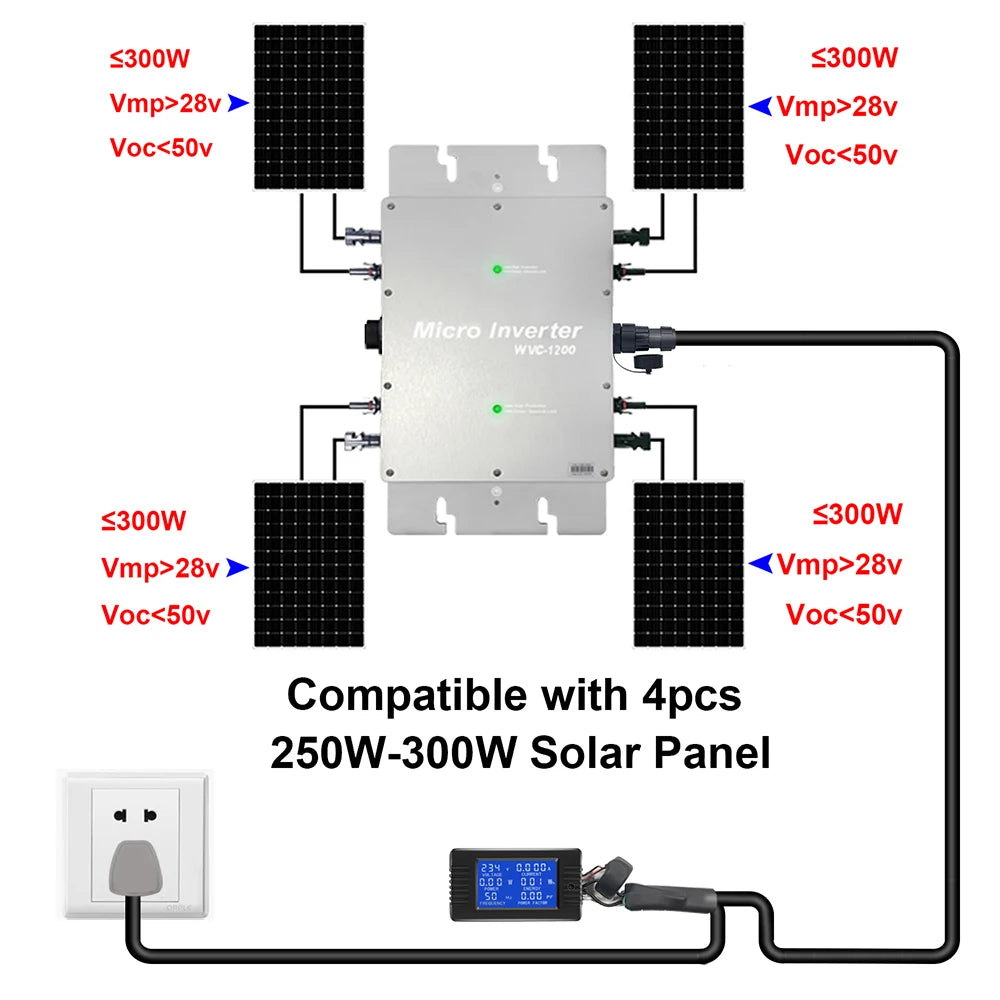

4.Suitable for 4X250W-300W 36V solar panel (Vmp30-39V; Voc36-50V)

5.Aluminum alloy material.Better heat dissipation.

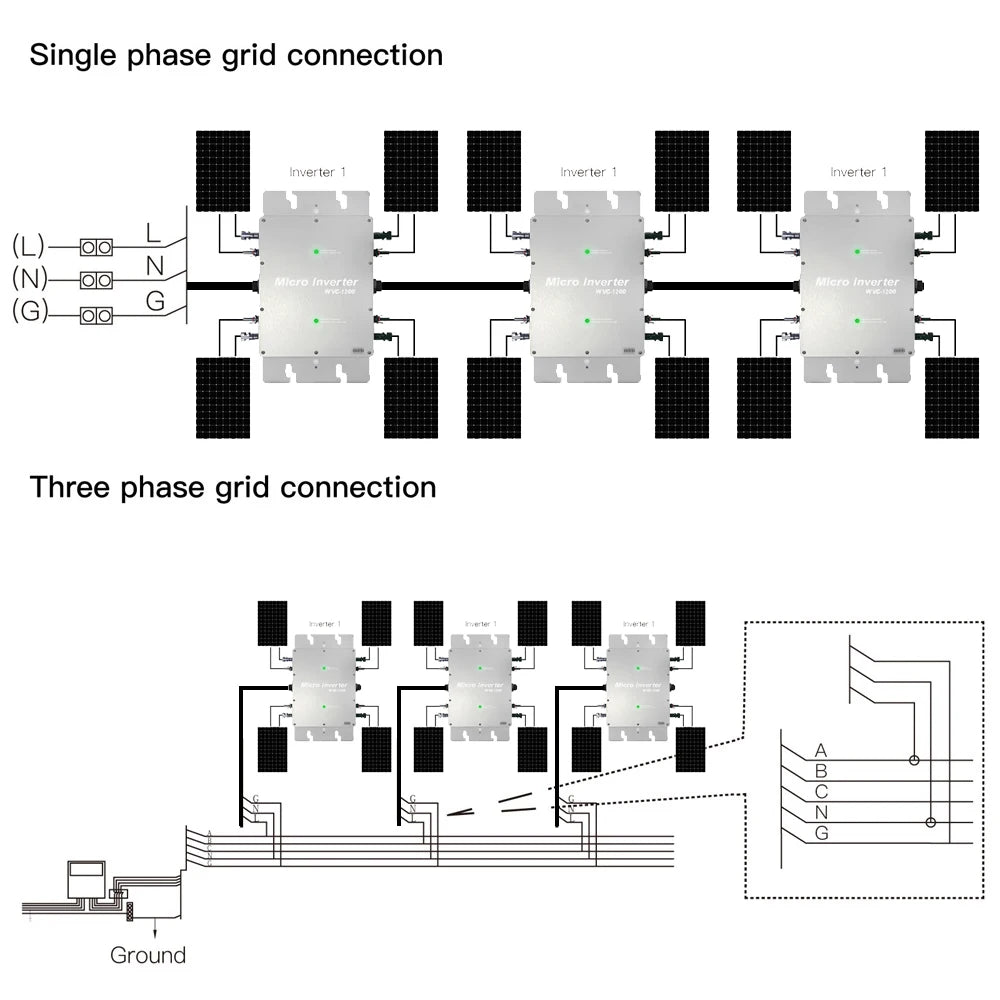

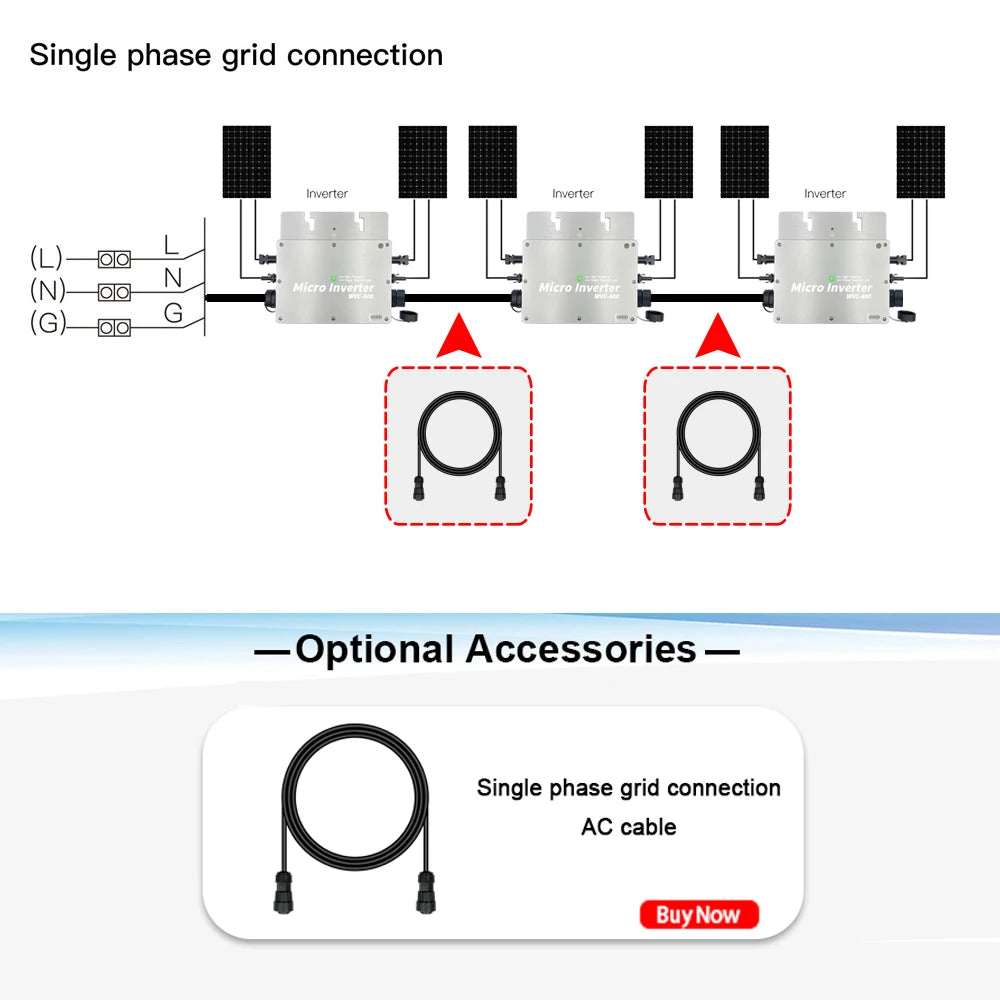

6.Support single-phase or three-phase connection.

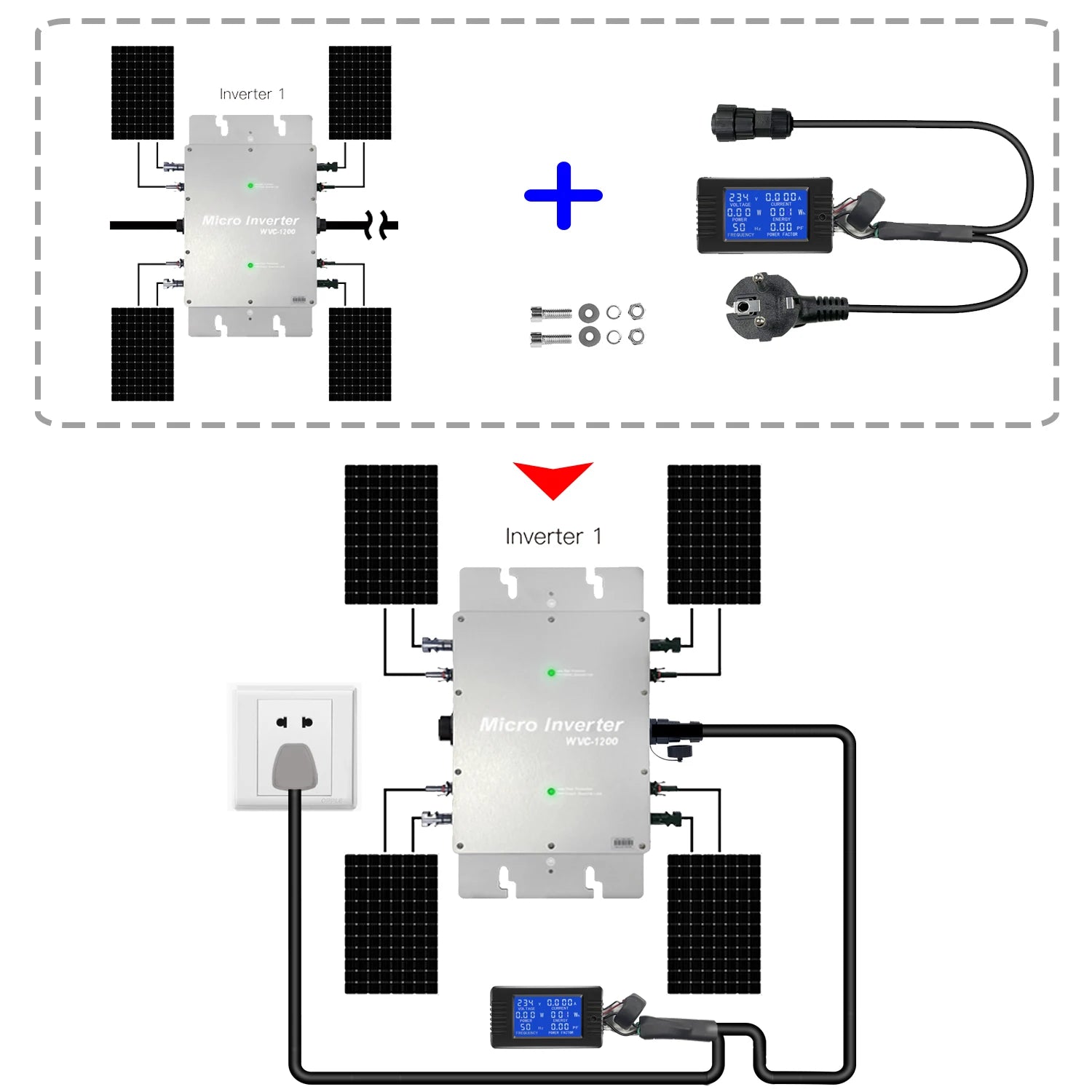

7.Simple wiring.

8.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.

Paramenters:

Model:WVC-1200W

Rated voltage:220V

Recommend PV:4*250~300W

Reccommend PV (Voc):34~50V DC

MPPT Tracking voltage:28~40V DC

Maxi Input Current:52A

Rated output current:5A

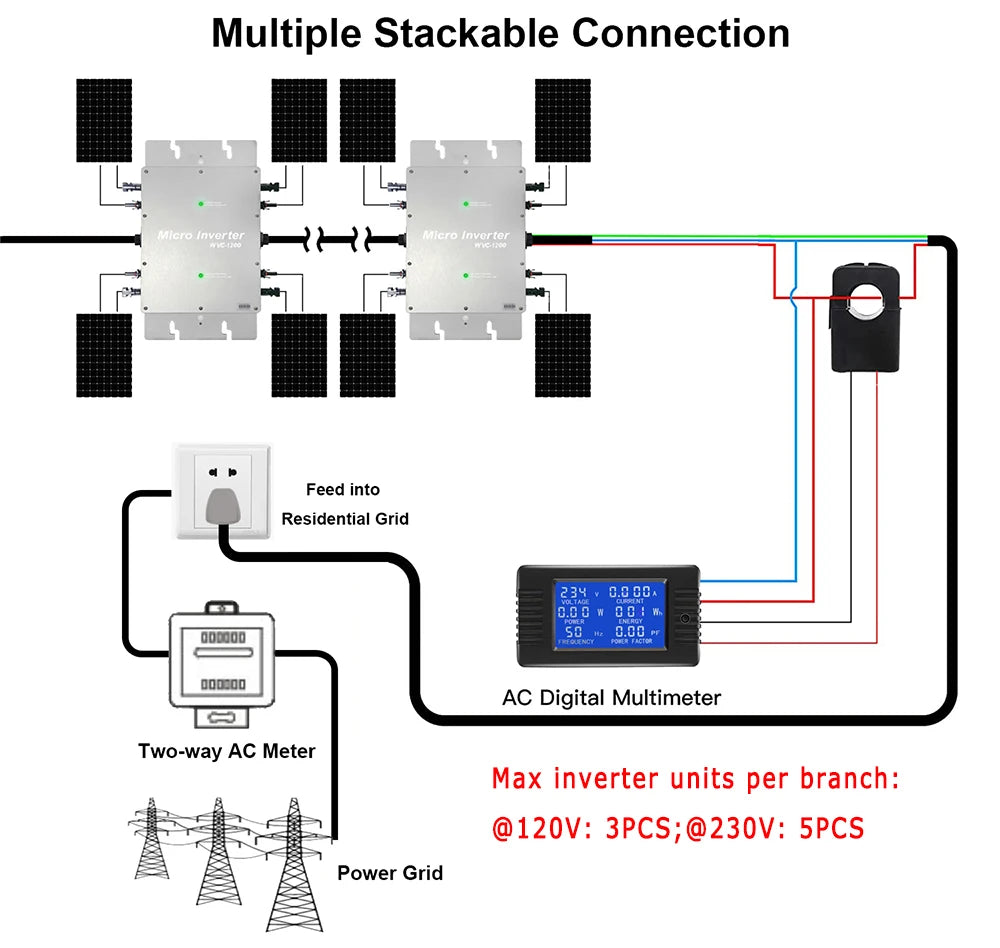

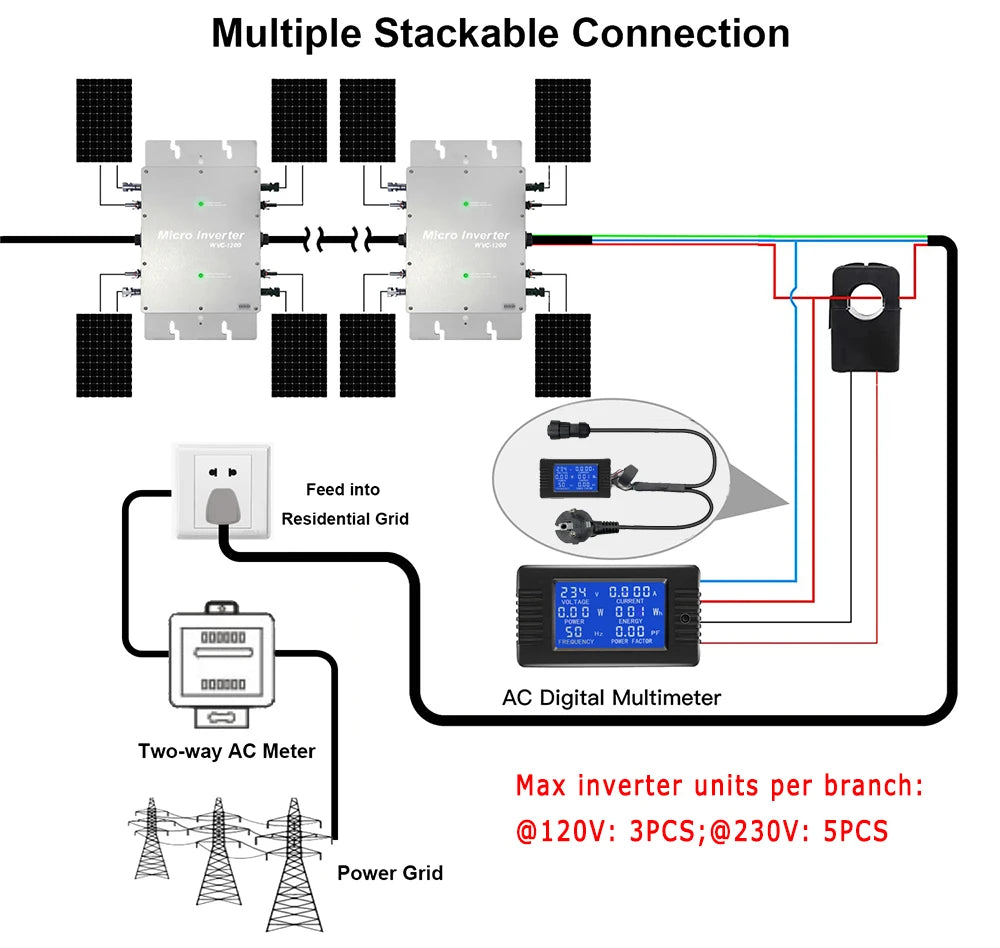

Max units per branch:5PCS

Rrequency:Auto switch 50/60Hz

Ambient temperature:- 40℃to +65℃

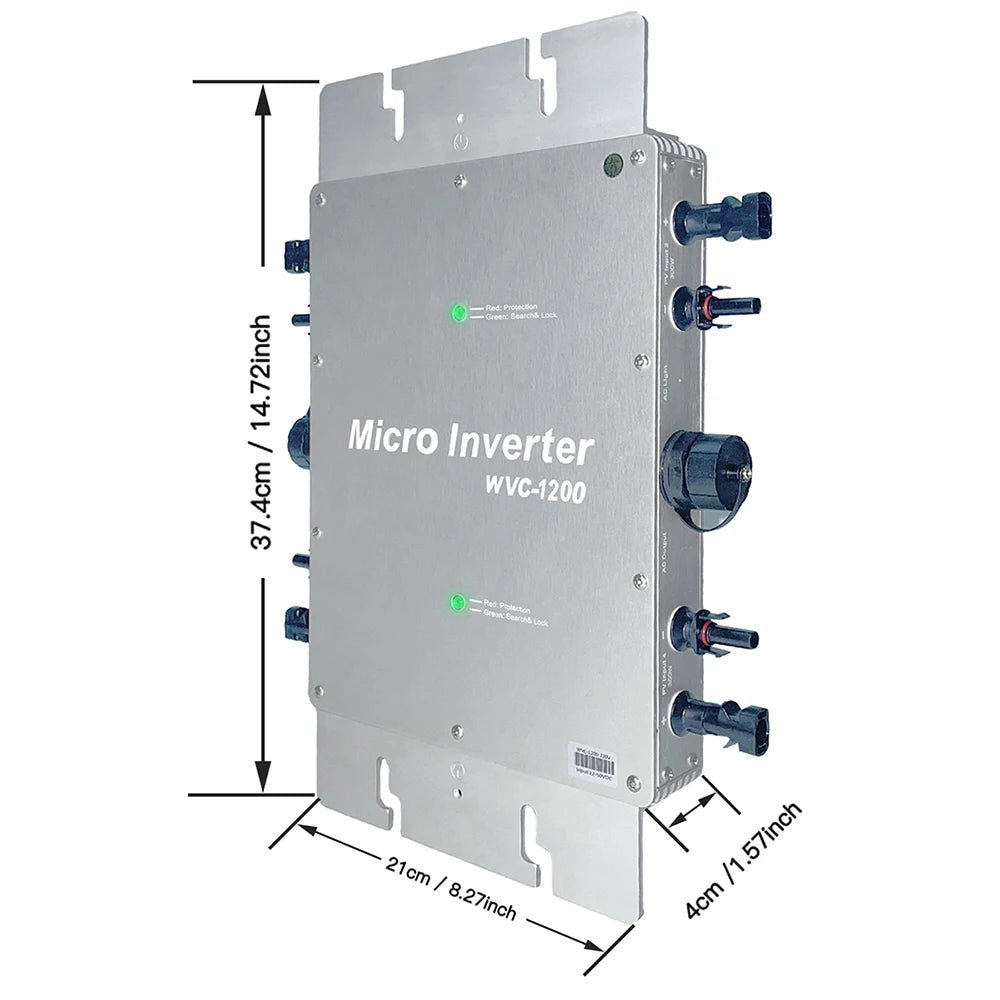

Dimensions:370mm×300mm×41.6mm

Weight:4kg

Cooling:Self-cooling

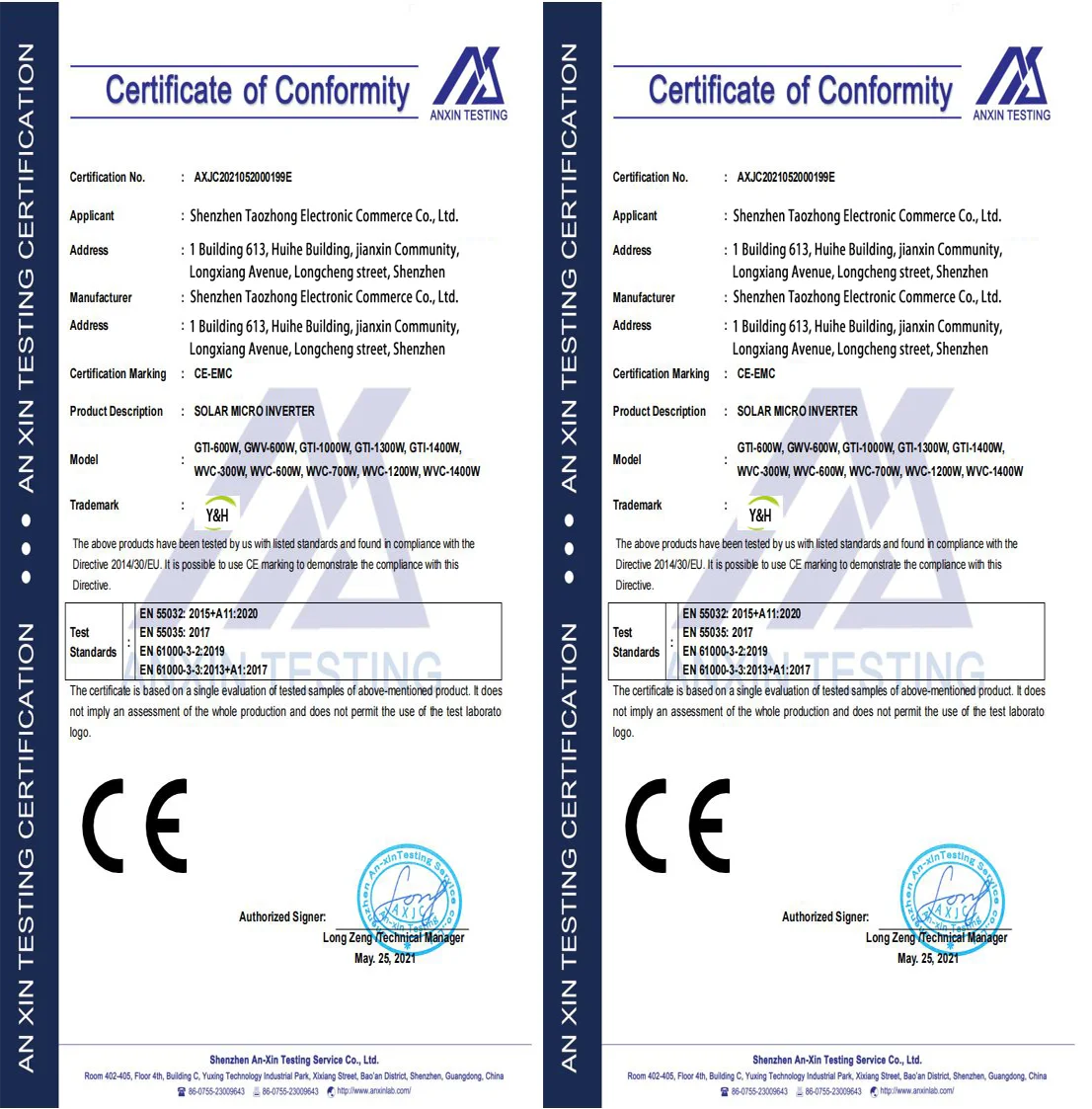

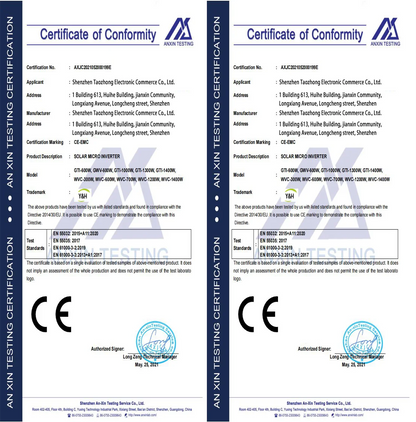

Certificate:CE

User notice：

• Vmp(of a solar panel) must be in the MPPT Tracking range to ensure the good output efficiency

• Use solar panel ONLY connect to this equipment.

• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.

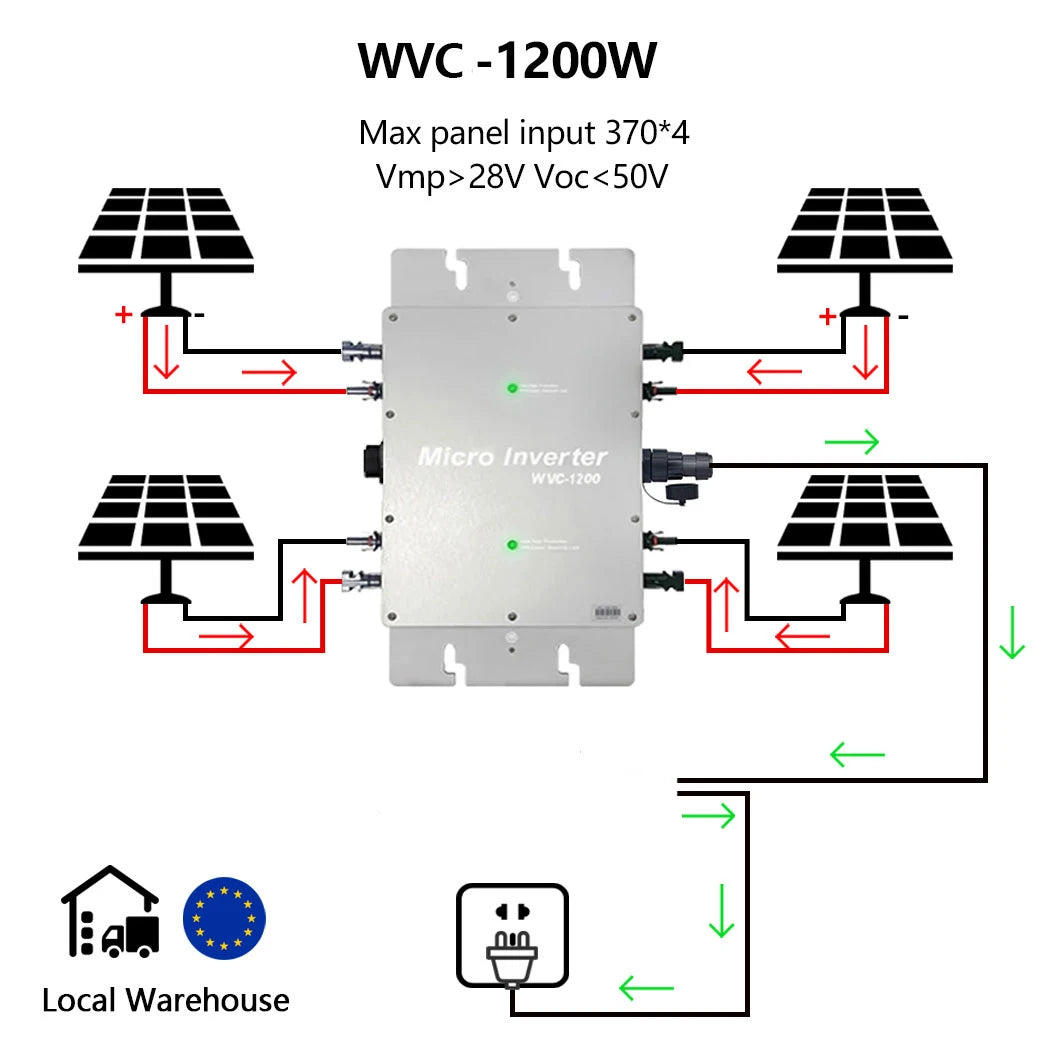

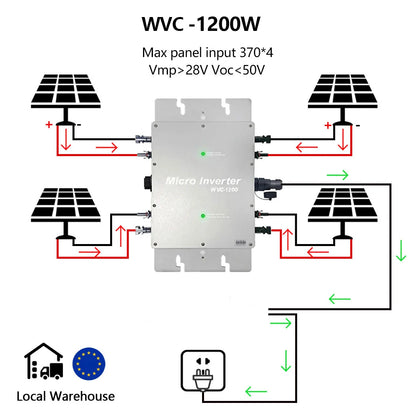

• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.（Vmp＞28V;Voc＜50V）

• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.（2X300W）

• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.

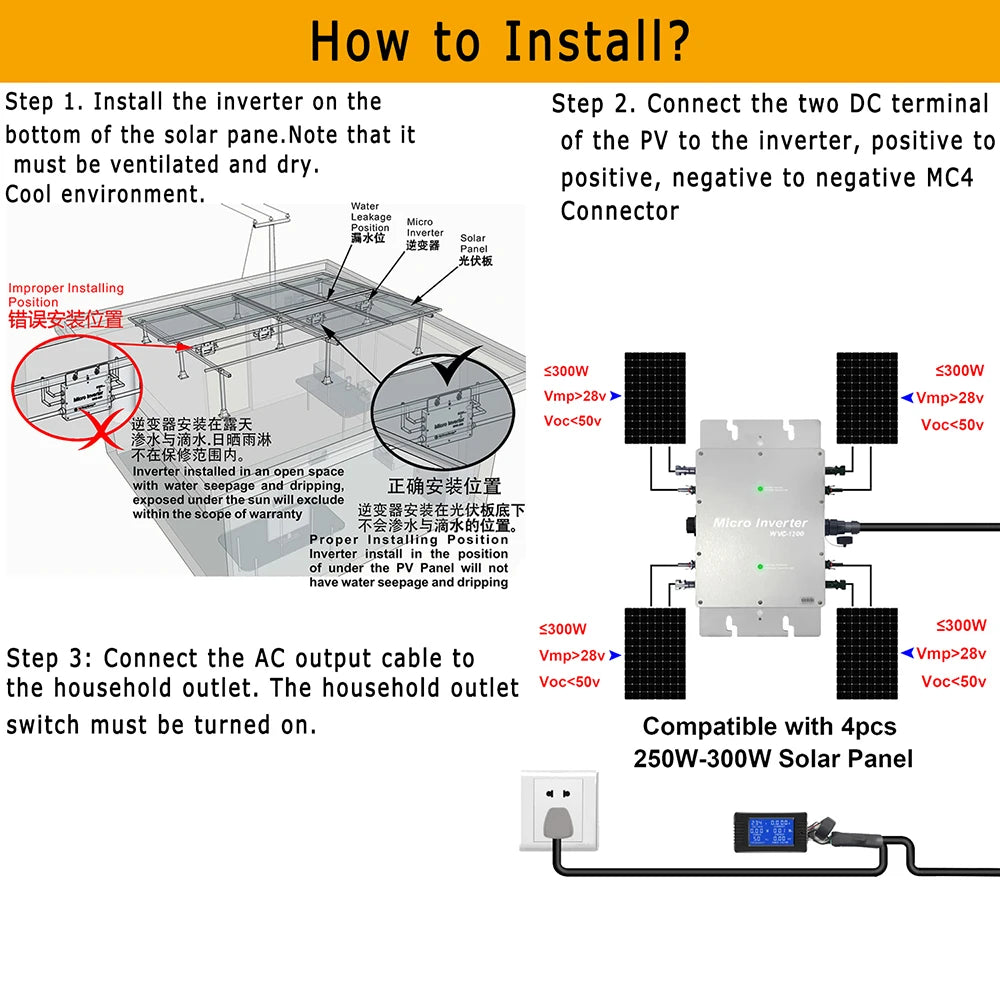

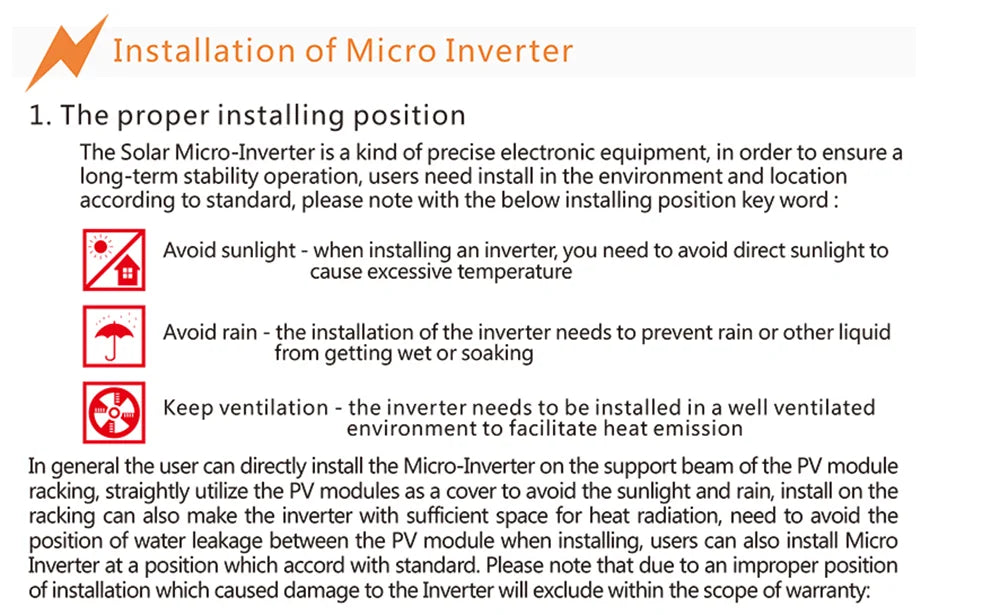

• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)

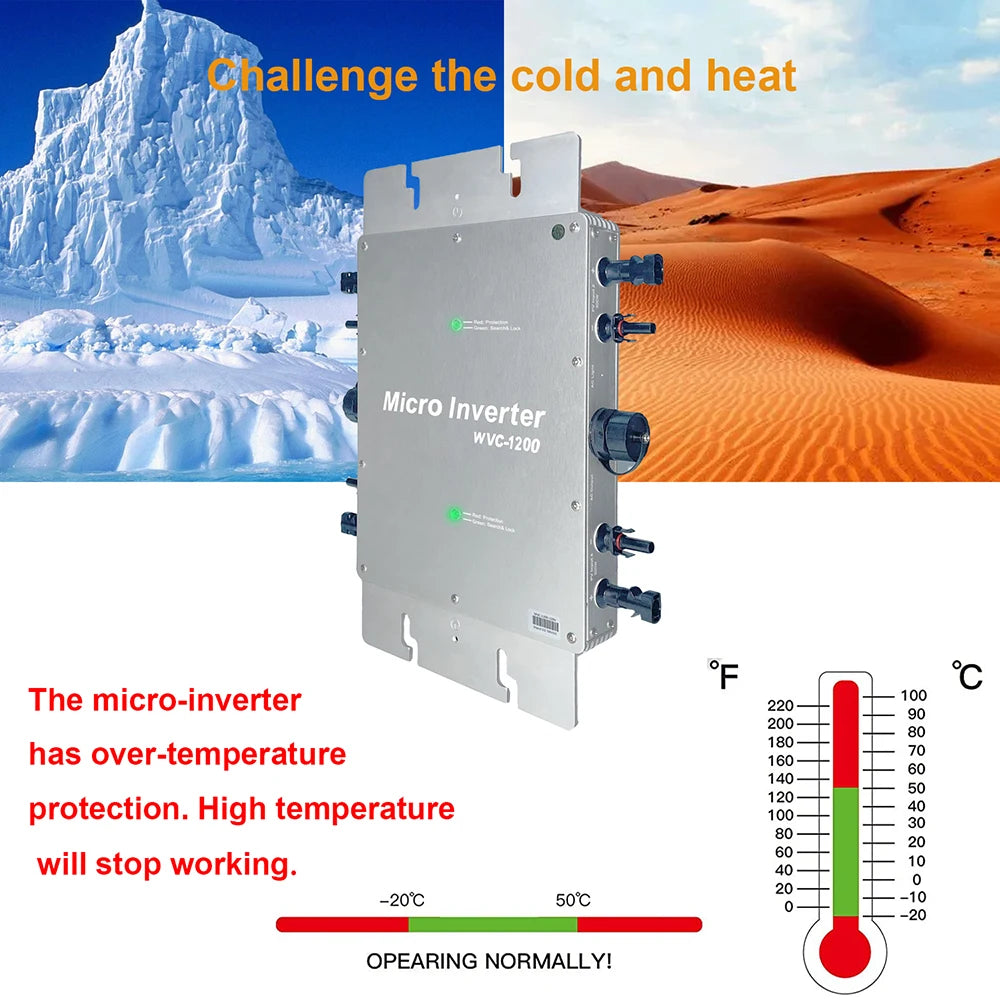

Regarding the heating problem of the inverter:

this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.

About inverter repair：

After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.

If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.
