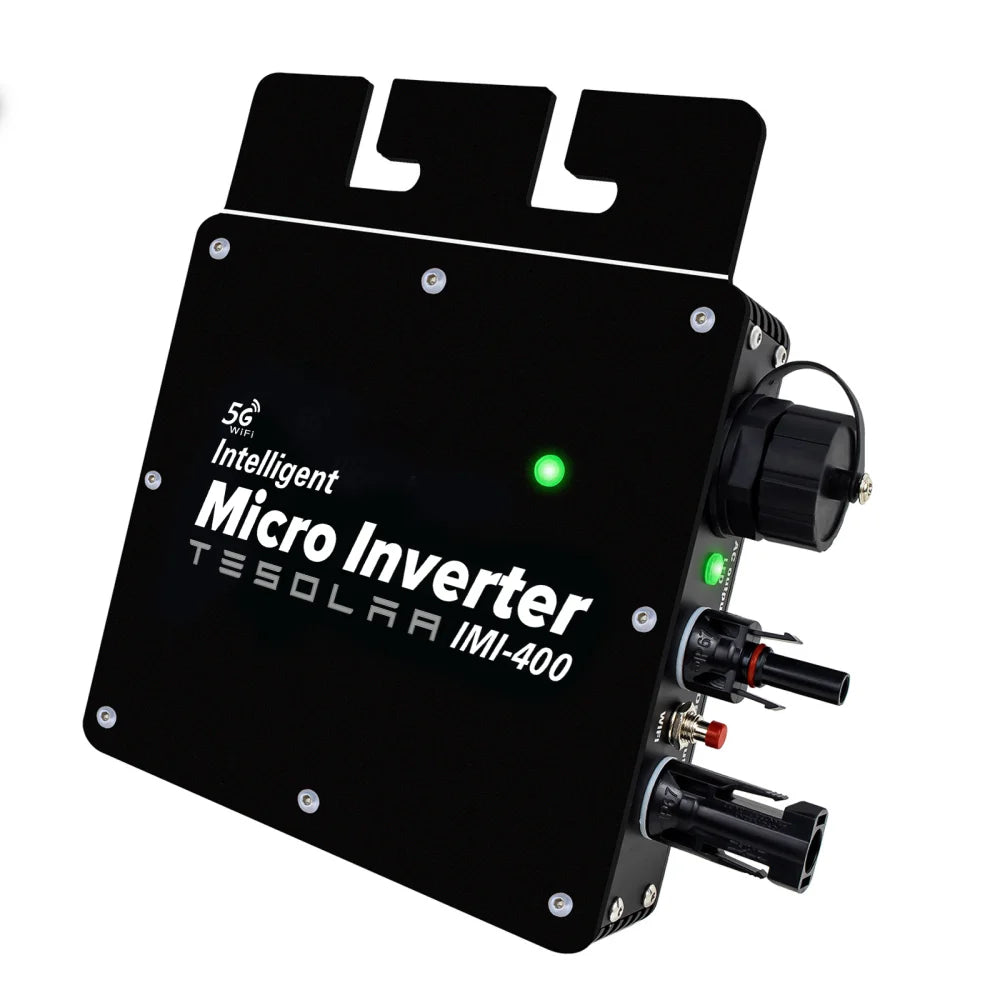

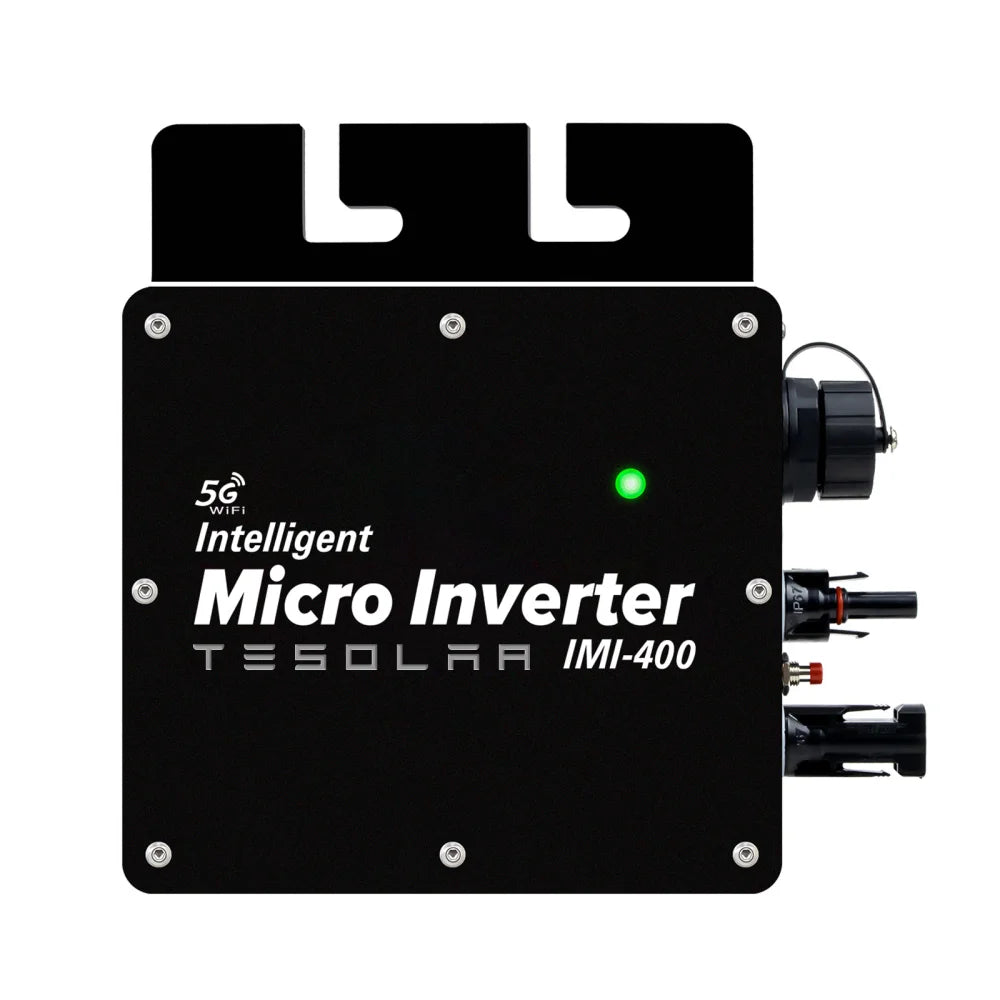

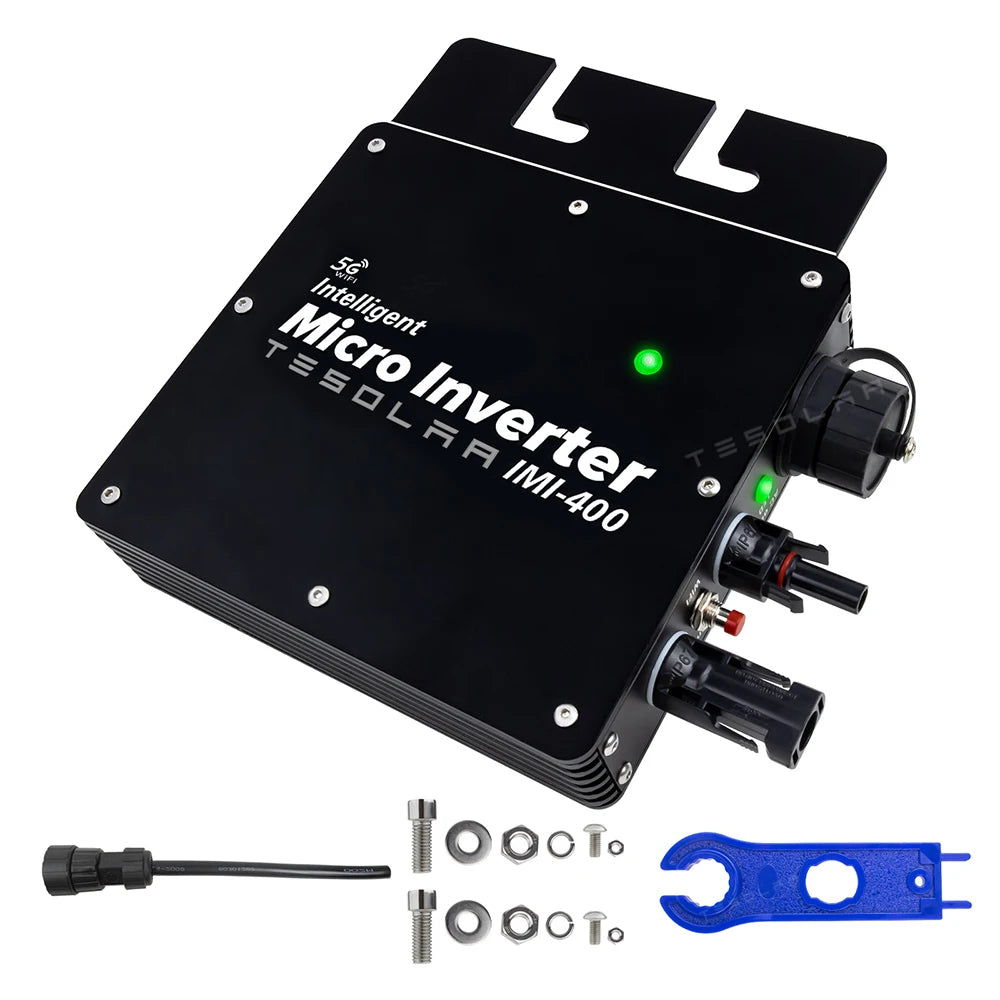

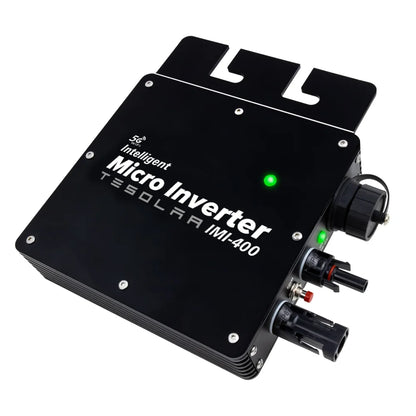

400W MPPT Grid Tie Micro Solar Inverter 220V 22-50VDC Pure Sine Wave MIcro-inverter With WiFi For Solar Panel PV Power System
400W MPPT Grid Tie Micro Solar Inverter 220V 22-50VDC Pure Sine Wave MIcro-inverter With WiFi For Solar Panel PV Power System
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: VESDAS
Certification: CE,FCC,RoHS
Choice: yes
Color: Black, Blue, Gold
DC short current: 20A
Hign-concerned Chemical: None
Is Smart Device: Yes
Maxi Input Current: 13A
Model Number: IMI400
Origin: Mainland China
Output Current: 3.3A@120VAC, 1.7A@230VAC
Output Frequency: 50/60Hz(48-51Hz)
Output Power: 400W
Rated power: 400W
Rated voltage: @120V(80-160VAC); @230V(180-260VAC)
Size: 253*200*40mm
Start-Stop voltage: 22-50V
Waterproof Rating: IP65
Weight: 1.5KG
is_customized: Yes
semi_Choice: yes
Product Video
Product Introduction

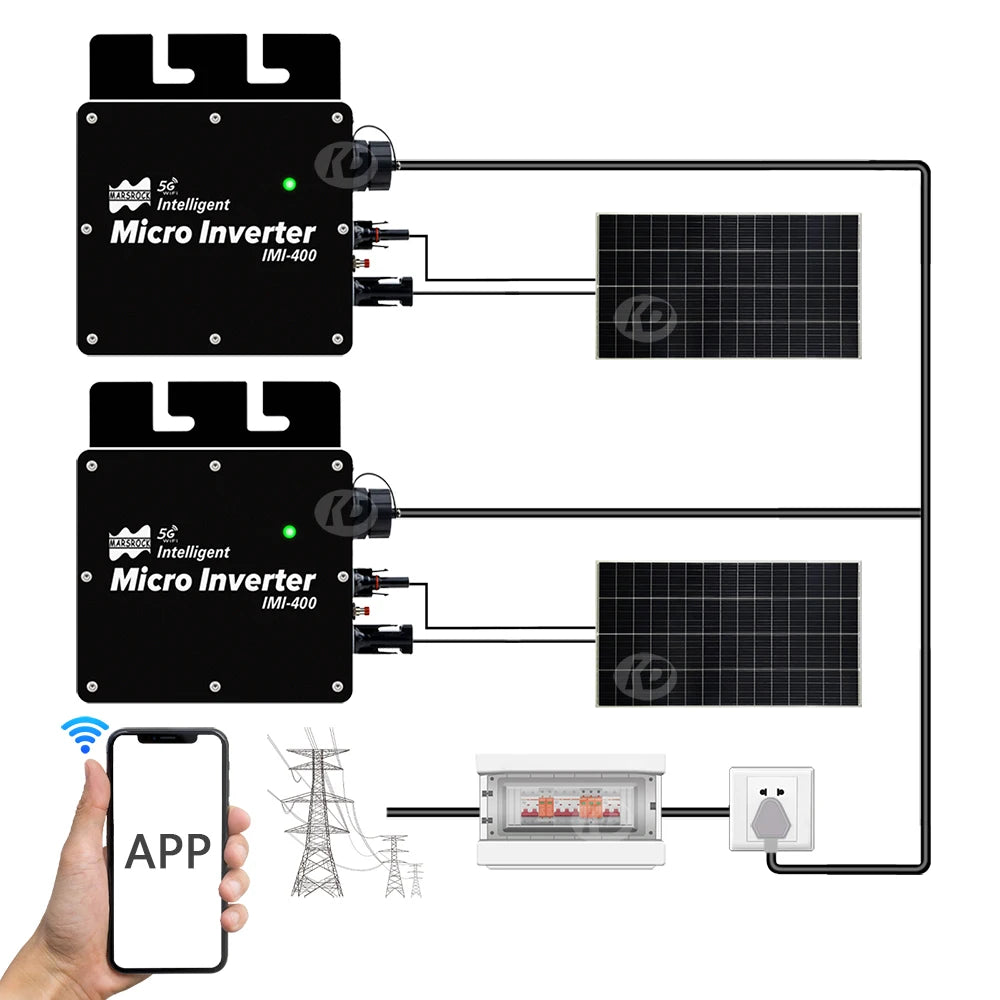

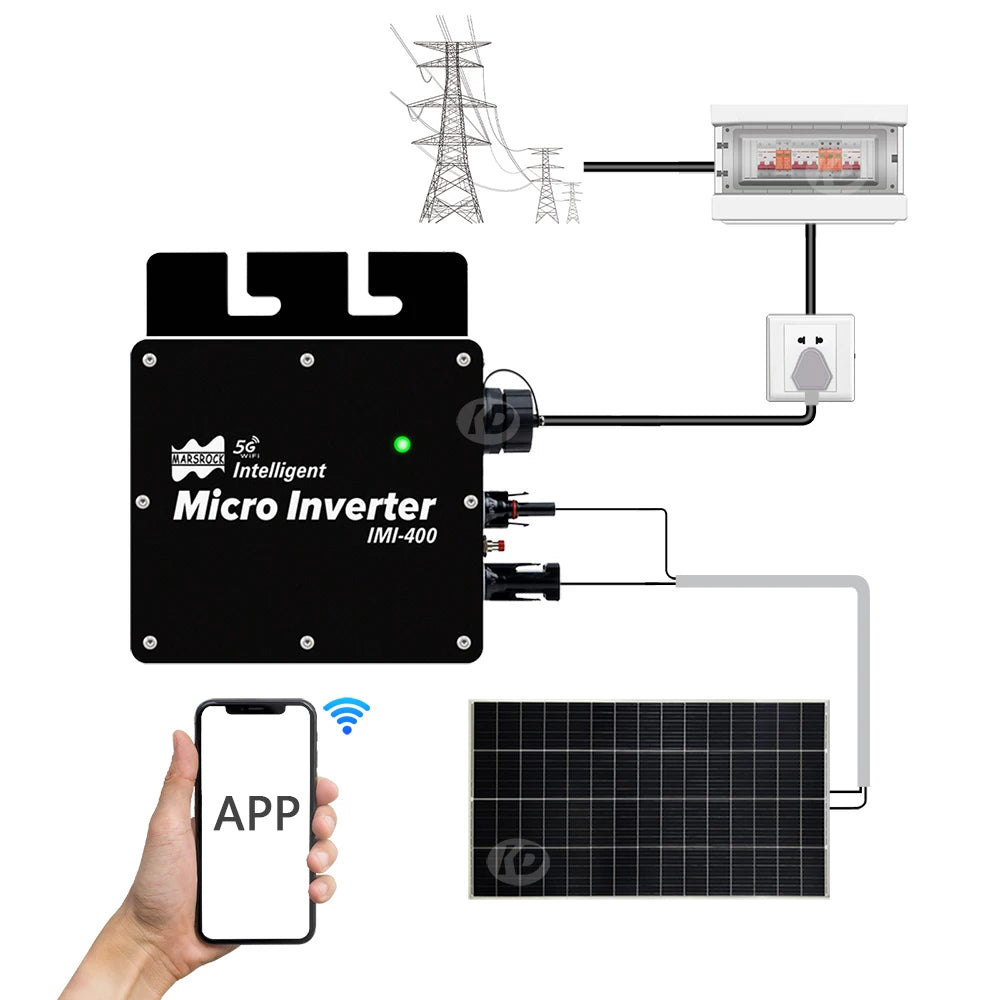

IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology, . The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.
The convenient way to directly scan the QR code to connect to the network is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.
Product Parameter
|
Model |
400W |
|
Input Data |
|
|
Recommend PV |
400W |
|
Start-Stop voltage |
22-50V |
|
Reccommend PV Voc |
33-50V |
|
MPPT |
23-50V |
|
Maxi Input Current |
13A |
|
DC short current |
20A |
|
Output Data |
|
|
Rated output current |
@120VAC 3.3A;@230VAC 1.7A |
|
Rated voltage |
@120V(80-160VAC); @230V(180-260VAC) |
|
Max units per branch |
@120V: 3PCS;@230V:6PCS |
|
Frequency |
50/60Hz(48-51Hz) |
|
Output Efficiency |
|
|
Static MPPT |
0.995 |
|
Power factor |
>99% |
|
Max output |
0.95 |
|
Self consumption |
<1W |
|
THD |
<5% |
|
Exterior |
|
|
Ambient temperature |
- 40℃to +65℃ |
|
Operating temperature |
- 40℃to +82℃(inverter inside) |
|
Dimensions（L×W×H) |
253mm×200mm×40mm |
|
Weight |
1.5kg |
|
Waterproof Rating |
IP65 |
|
Cooling |
Self-cooling |
|
Feature |
|
|
Power transmission mode |
Reverse transfer, load priority |
|
Communication |
WIFI(QR code scanning, automatic matching internet) |
|
Monitoring System |
Lifetime free |
|
Electromagnetic compatibility |
EN50081.part1EN50082.part1 |
|
Grid disturbance |
EN61000-3-2 Safety EN62109 |
|
Grid detection |
DIN VDE 1026 UL1741 |
|
Certificate |
CE，RoHs, FCC |

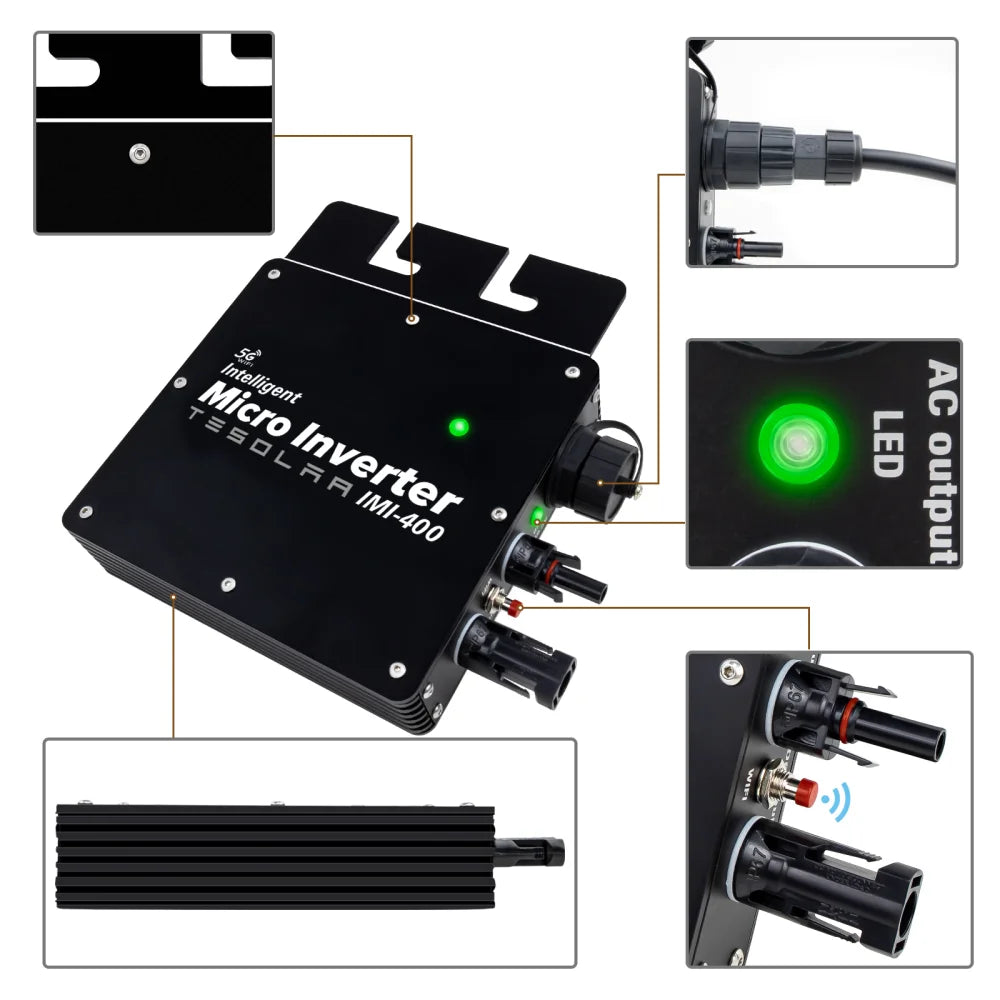

Product Features

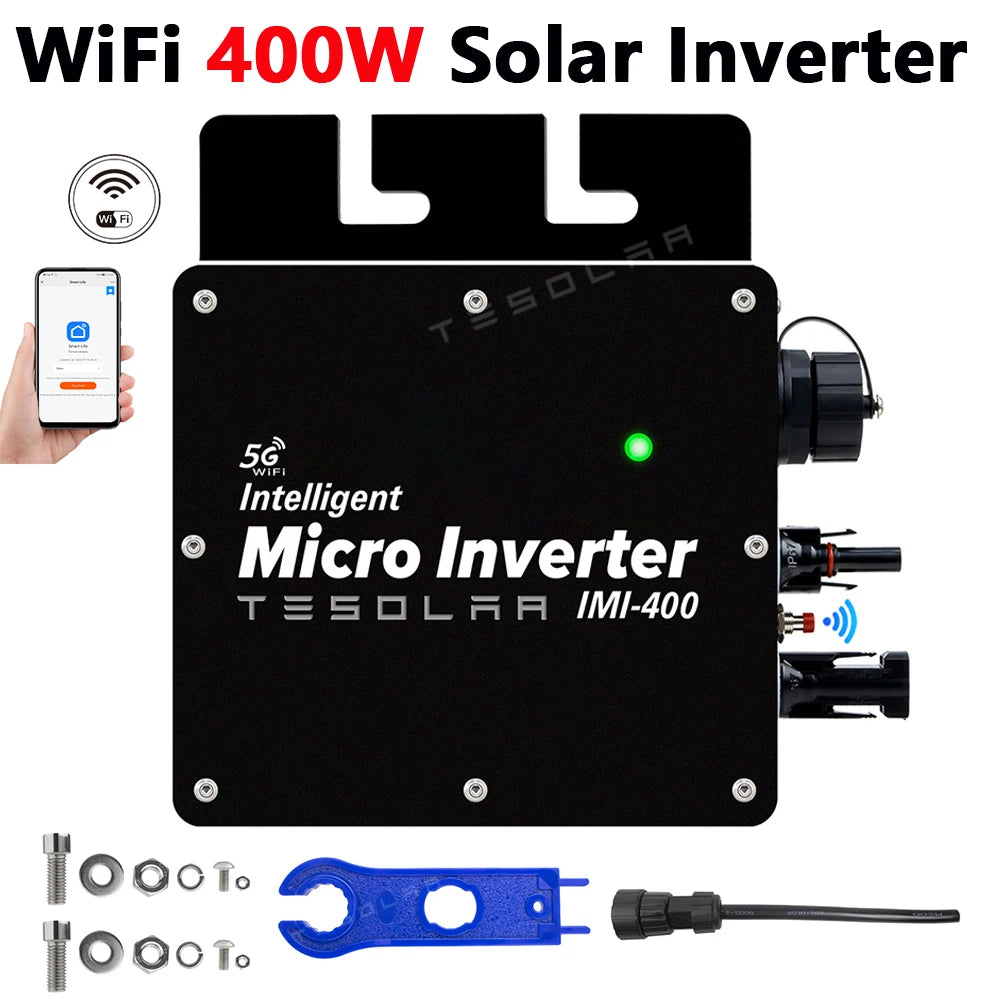

1.IMI Series adopt scanning the QR code to connect with internet which is easy to be operated through Smart Phone APP or PC to monitor power system data.
2.IMI inverter using IP65 waterproof streamline design, which can effectively prevent rainwater on surface erosion.
3.Built-in high performance maximum power point tracking function, can track changes in the solar luminosity and control different output power, effectively capture and collect sunlight and use of the inverter to the power emitted, electricity transmission rate of up to 99%.

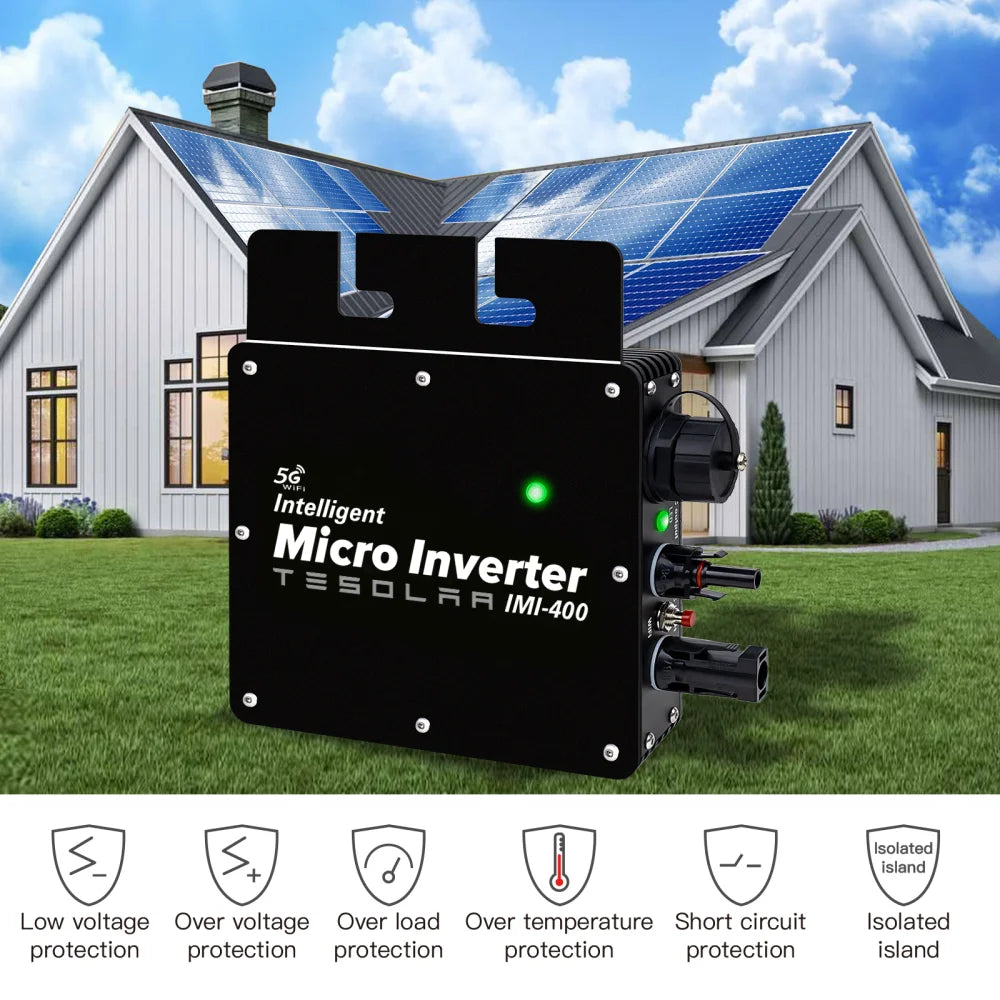

4.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.
5.Flexible installation. The PV input power workable from 250-450W. DC input 20-50V design can suitable for 36Cells, 60 cells, 72 cells put into in series or in parallel.
