SPECIFICATIONS

Brand Name: REDPULSE

Certificate: CEI/EN 62109-1/-2, CEI/EN 61000-6-1/-2/-3/-4, CEI/EN 61000-3-2/-3

Communication Method: WiFi MESH

Input Voltage: 60V

Inverter Efficiency: 96%

MPPT Efficiency: 99.9%

MPPT Voltage: 18~48V

Max. Input Short-Circuit Current: 25A

Max. Number of Input: 2

Model Number: RPMI-700-800-2T

Number of MPPTs: 1

Operating Temperature: -40℃~+65℃

Output Current: 3.18A/3.64A

Output Frequency: 50/60Hz

Output Type: Single Phase

Output Voltage: 187-270V

Place of Origin: Shanghai, China

Protection Grade: IP67

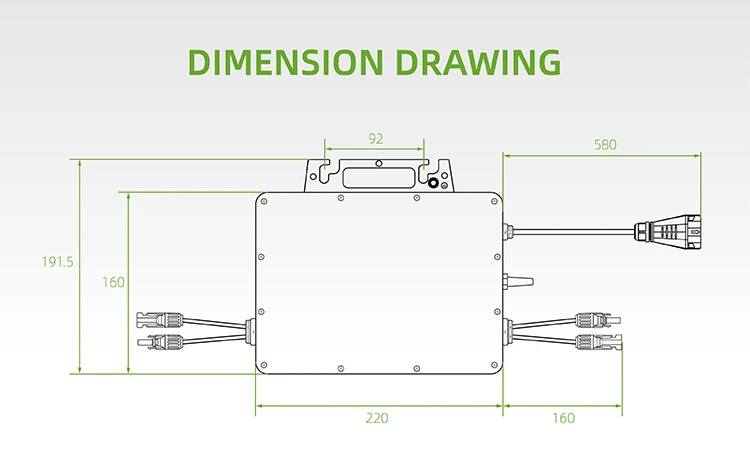

Size: 226*198*36mm

Starting Voltage: 16V

Type: DC/AC Inverters

Weight: 2.5kg

Products Description

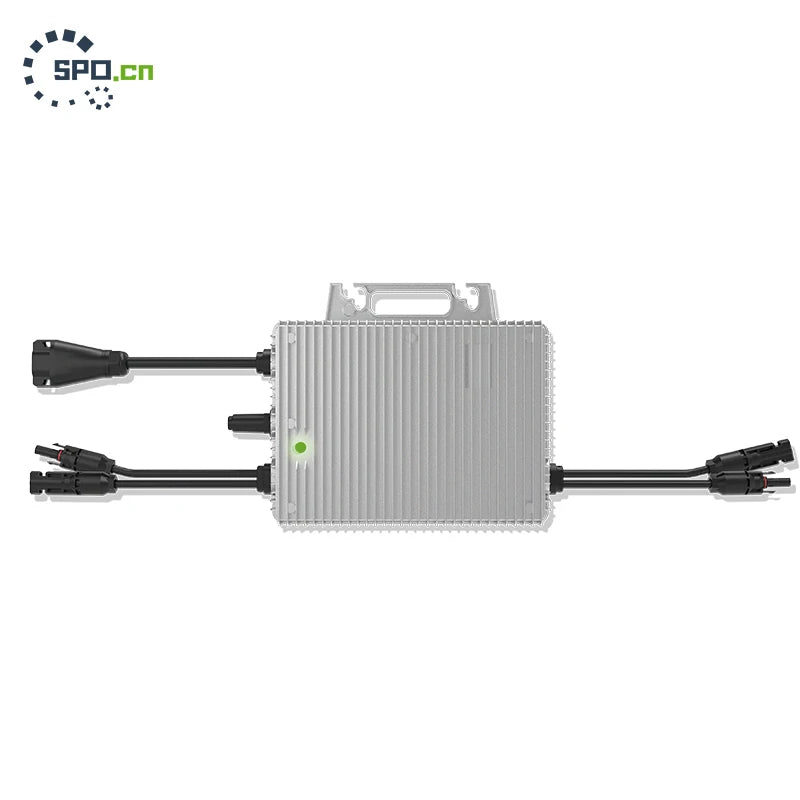

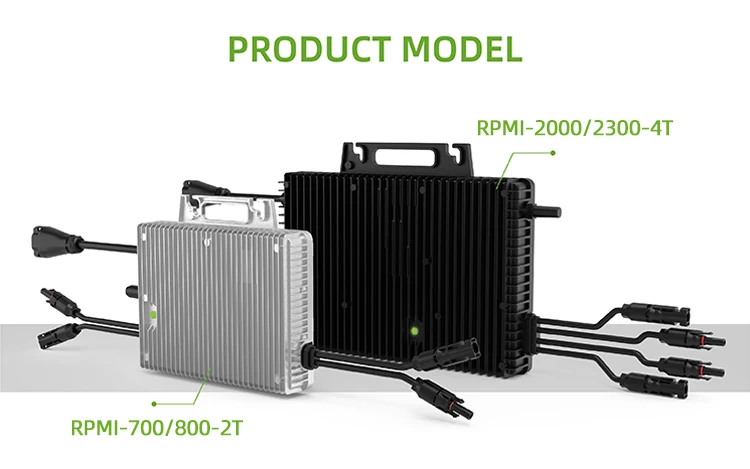

RPMI-700/800-2T

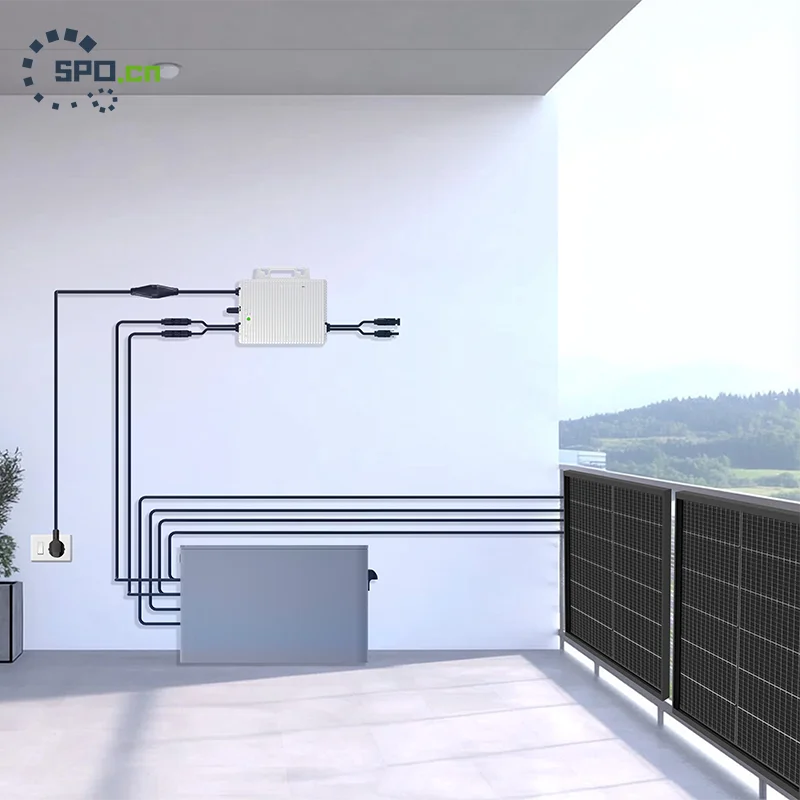

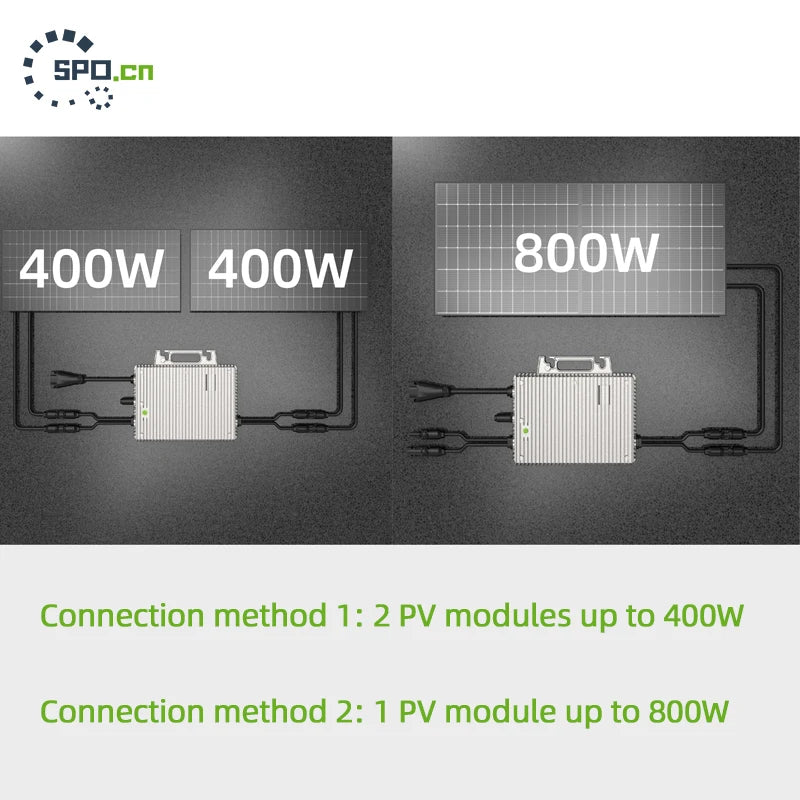

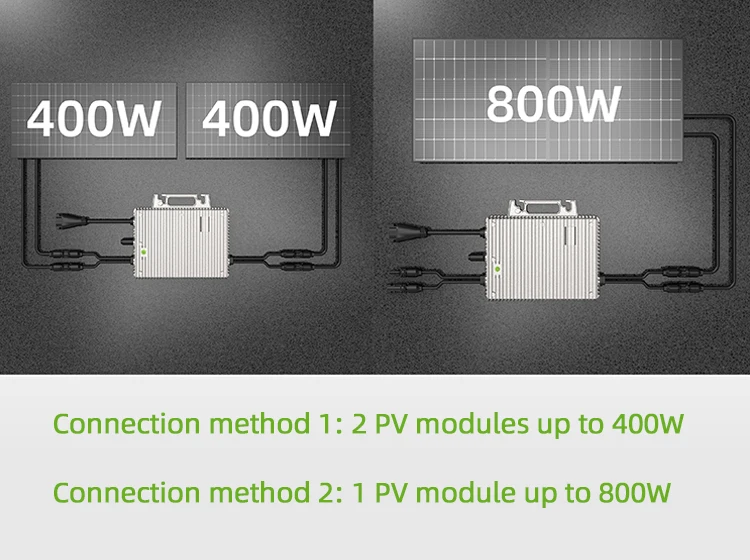

RPMI-700/800-2T series microinverter is specially designed for small and medium-sized solar power generation systems, with a typical application case being balcony solar systems.It can meet the power generation demand of one PV module up to 800W or two PV modules up to 400W.

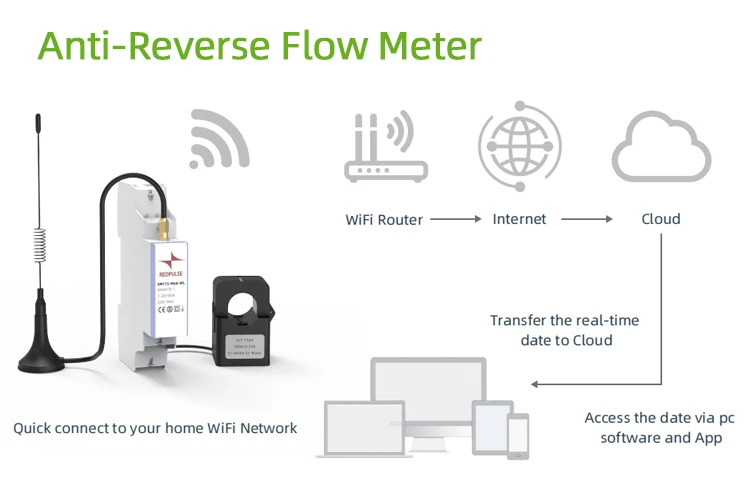

Equipped with the self-develoaped anti-reverse flow meter, it can automatically match the real-time power of household electrical equipment and control the power output of PV modules.

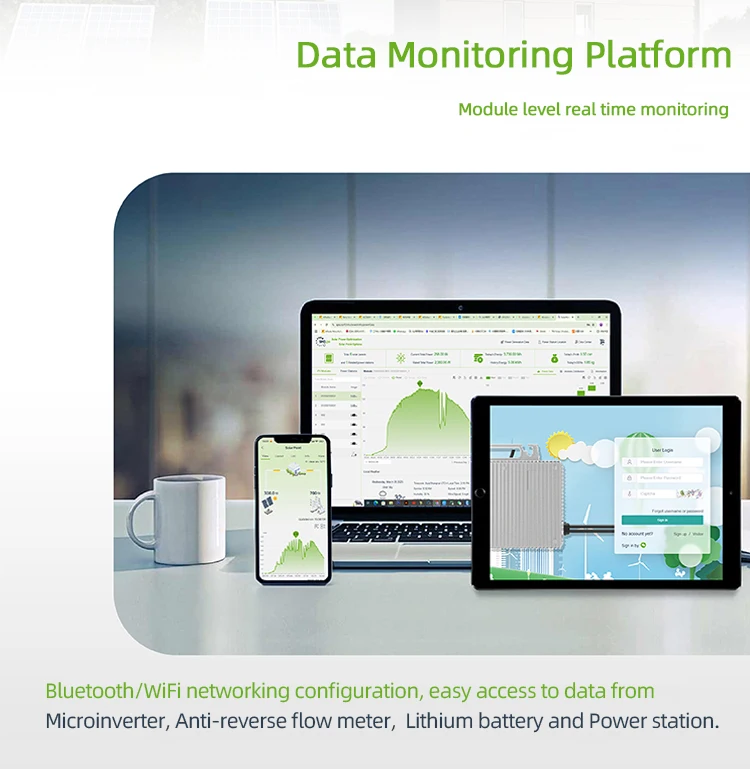

Data monitoring: Integrated industrial-grade Wi-Fi module, automatic MESH networking function, simple setup can be networked through the home router, through the Solar Point data platform to view the power generation status of each PV module.

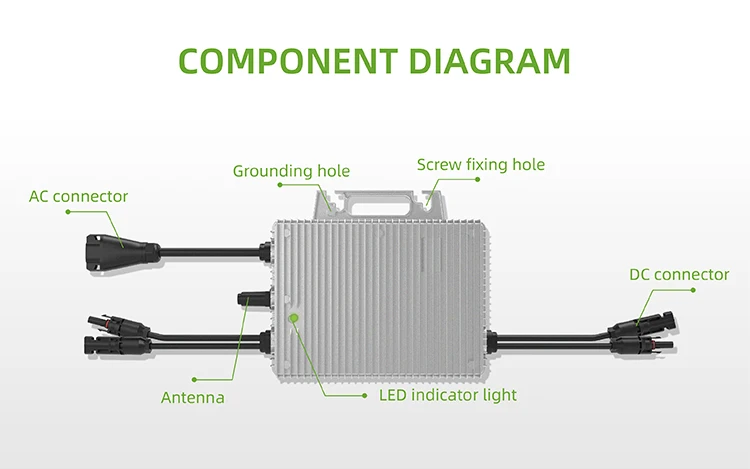

Installation: with user-friendly connectors, plug and play, clean energy, easy to get.

MODEL	RPMI-700-2T	RPMI-800-2T	RPMI-2000-4T	RPMI-2300-4T
INPUT（DC）
Solar panel	300～730W	300～800W	400～670W	450～730W
Max. input voltage	60V
MPPT voltage range	18～48V					18～48V
Starting voltage	16V
Max. input current	2*12A/20A	2*14A/20A	4*20A	4*20A
Max. input short-circuit current	25A			4*25A
Number of MPPTs	1			4
Max. number of input channels	2			4
OUTPUT（AC）
Rated output power	700W	800W	2000W	2300W
Rated output current	3.18A	3.64A	9.09A	10.45A
Output voltage/Range	220V/187V~270V
Rated frequency	50/60Hz
Power factor (Adjustable)	>0.99 Default
THD	＜3%
DC Component	＜0.5%In
Max. number of microinverter of each branch(10AWG trunk cable)	8			3
Max. number of microinverter of each branch(12AWG trunk cable)	6			2
EFFICIENCY
Peak efficiency	96%			96%
MPPT efficiency	99.9%
COMMON PARAMETER
Environmental temperature	-40℃～+65℃
Size	226*198*36mm			326*252*42mm
Weight	2.5kg			5.4kg
Protection grade	IP67
Max. altitude	＜2000m
Cooling method	Natural cooling
Night power consumption	＜50mV
Communication method	WiFi MESH
Isolation method	High frequency transformer electrical isolation
Monitoring platform	Solar Point intelligent data monitoring platform
Grid connection standard	NB/T 42142 - 2018
Certificate	CEI/EN 62109-1/-2, CEI/EN 61000-6-1/-2/-3/-4, CEI/EN 61000-3-2/-3
SECURITY PROTECTION FUNCTION
Anti-islanding protection, input reverse protection, output short-circuit protection, output over-current protection output over-voltage protection, 6000V surge protection

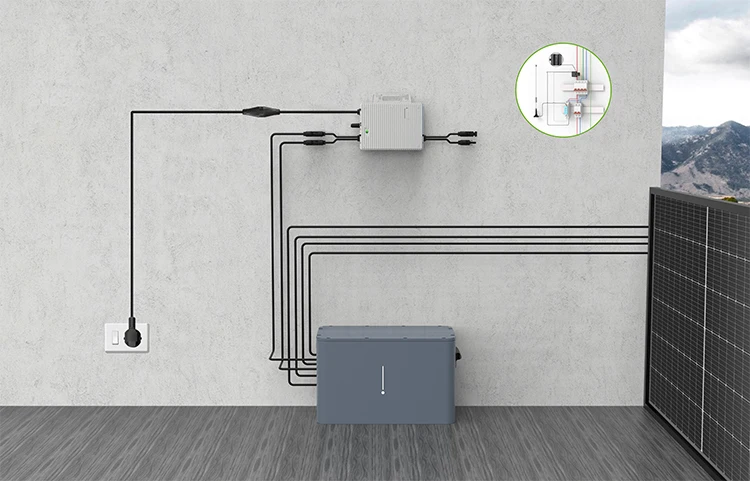

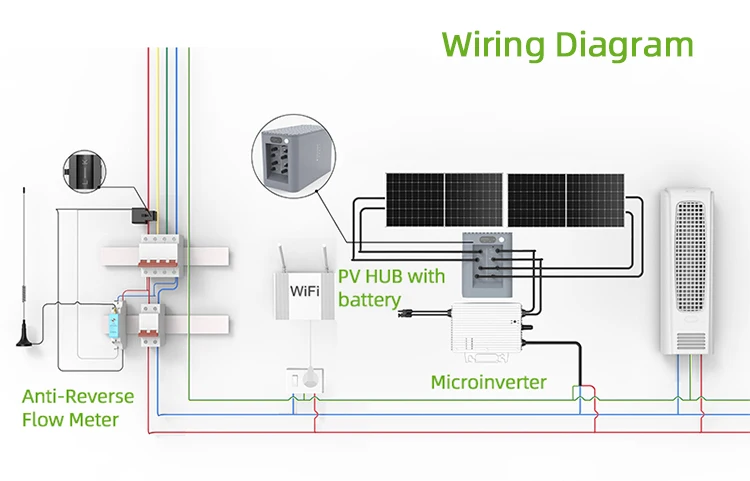

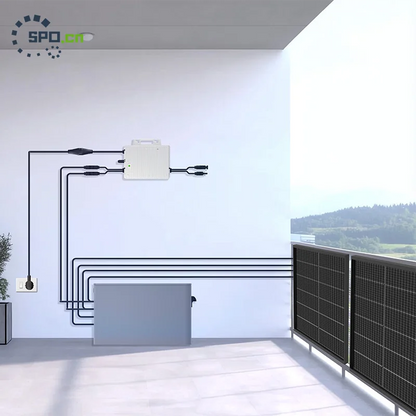

Solar Point Balcony Solar System Solar Point Balcony Solar System is a highly efficient grid-tied energy storage system. 1. Equipped with the self-develoaped anti-reverse flow meter, it can automatically match the real-time power of household electrical equipment and control the power output of solar panels. 2. Equipped with the PV HUB controller and lithium battery, it stores extra solar energy generated during the daytime and provides power through the night, effectively reducing your peak-hour energy costs and cutting down your carbon footprint.

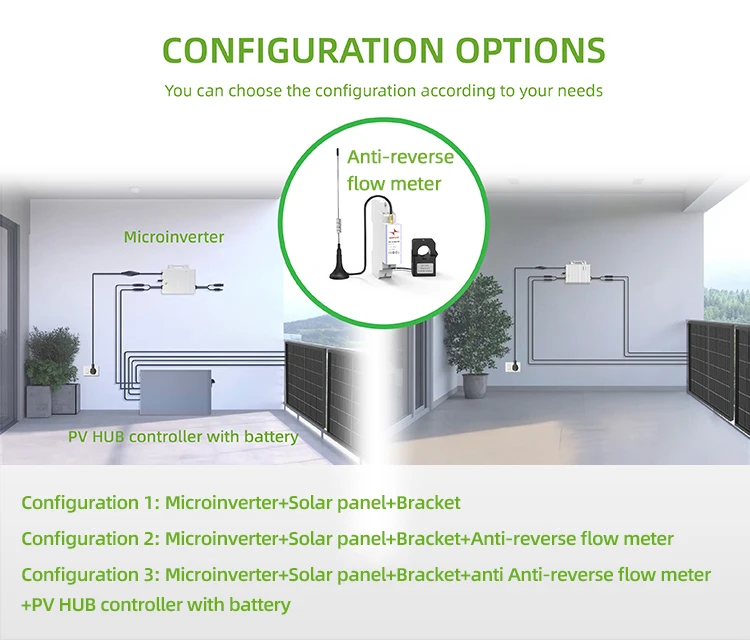

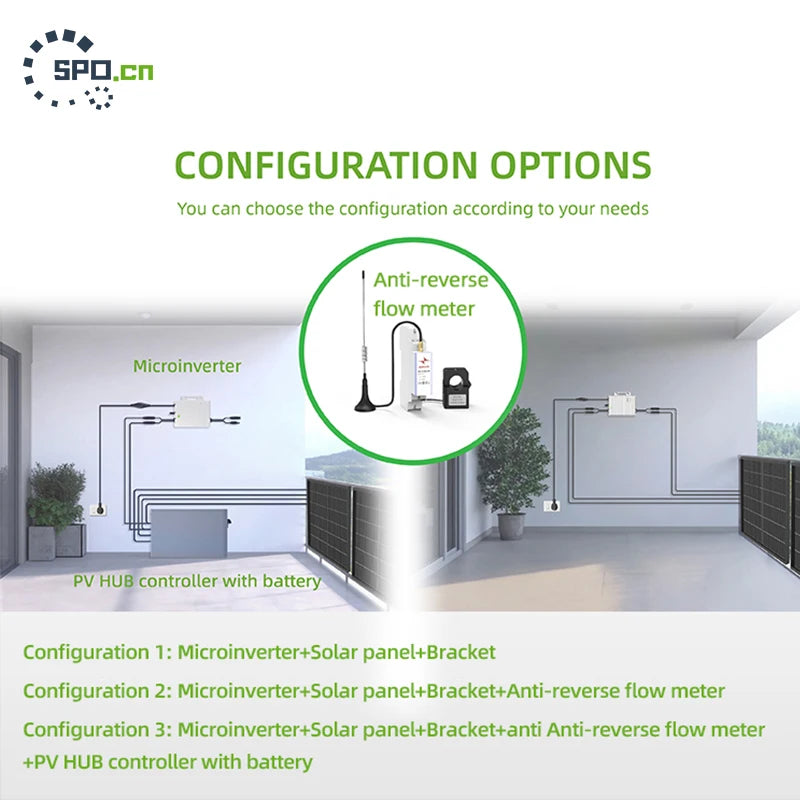

Product Configuration
Microinverter	RPMI-700-2T / RPMI-800-2T / RPMI-2000-4T / RPMI-2300-4T
Solar Panel	435-455W Full black lightweight solar panel
Bracket	Full black Aluminum alloy bracket
Anti-Reverse Flow Meter	Optional
PV HUB Controller	Optional
Lithium Battery	Optional

Single phase 1 modular energy meter with WiFi module, RS485 interface 330mV CT AC input.
* Bidirectional energy metering 1 DIN modules, 230VAC 50Hz/120VAC 60Hz.
* Accuracy class B according to EN50470-3，Accuracy class 1 according to IEC62053-21.
* Solid-core sensor &open-core sensor, 330mV AC input 100A.
* Total energy usage can be calculated via 5 different modes.
* Reactive power and reactive energy available through interface.
* Built-in RS485 communication port, modbus protocol.
* S0 pulse output, transmission of measured values via pulses.
* Wifi support 802.11b/g/n, Frequency range: 2.412GHz-2.484GHZ.
