800W & 600W Smart Solar Micro Inverter Power Limiter with Wifi Communication Single & Three Phase Output Grid Tie Microinverter
800W & 600W Smart Solar Micro Inverter Power Limiter with Wifi Communication Single & Three Phase Output Grid Tie Microinverter
Regular price
£75.99 GBP
Regular price
£0.00 GBP
Sale price
£75.99 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ACrevPOWER
Color: Silver
Controller: MPPT controller
Input Voltage: 20-50V
Input interface (set): 2
Inverter Efficiency: 91%
Model Number: QC~800W
Output Frequency: 50hz/60hz
Output Type: Single Phase,Three Phase
Output Voltage: 110V/120V/220V/230V
Output cable: 1.8M solar cable
Place of Origin: Guangdong, China
Product Name: Grid micro inverter(stand by WIFI) Mobile APP communication
Solar panel input power: 800W
Type: DC/AC Inverters
Weight: 2.27kg
communication Way: WIFI-2.4G
model: QC~ 800W
specificities: Mobile app monitoring and adjusting output power
water proof grade: IP65

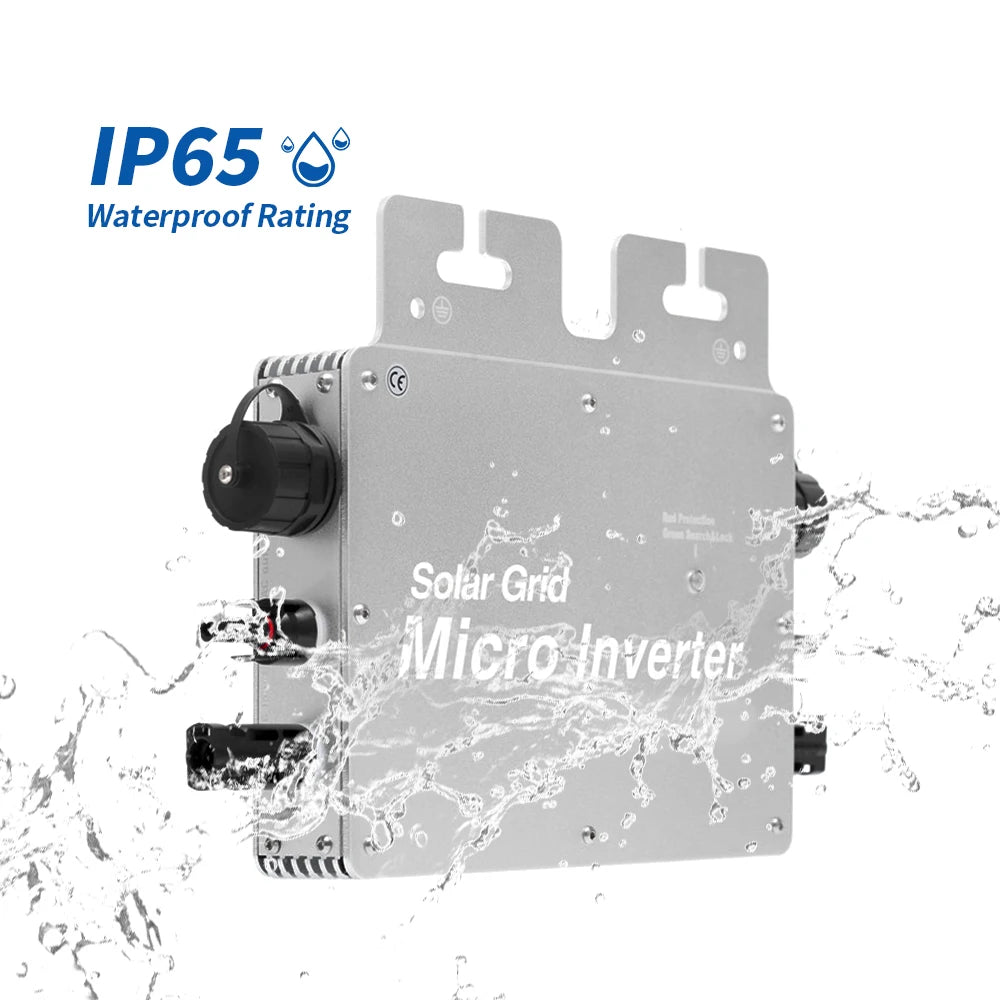

> IP65 waterproof grade, the whole body machine is covered with waterproof glue
> Smart phone APP Tuya intelligence system
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking
Specification
|
Micro Inverter
|
600W
|
700W
|
800W
|
||
|
Recommendedsolar panel input power (W)
|
200-300W*2
|
250-350W*2
|
275-400W*2
|
||
|
Maximum DC input voltage
|
52V
|
|
|
||
|
Operating voltage range
|
18-48V
|
|
|
||
|
Controller Type
|
mppt
|
|
|
||
|
MPPT Tracking Range
|
22-48V
|
|
|
||
|
MPPT Tracking accuracy
|
>99.5%
|
|
|
||
|
Maximum DC input current
|
12A*2
|
|
|
||
|
Rated output Power
|
600W
|
700W
|
800W
|
||
|
Rated output voltage
|
120V / 230V
|
|
|
||
|
Output voltage range
|
90-160V/190-270V
|
|
|
||
|
Rated AC current (at 120V)
|
5A
|
5.83A
|
6.6A
|
||
|
Rated AC current (at 230V)
|
2.6A
|
3A
|
3.47A
|
||
|
Maximum number of branch circuit connections
|
@120VAC : 5 set / @230VAC : 10 set
|
|
|
||
|
Maximum conversion efficiency
|
95%
|
95%
|
95%
|
||
|
Rated output frequency
|
50Hz / 60Hz
|
|
|
||
|
Protection class
|
IP65
|
|
|
||
|
Working environment temperature
|
-40℃——+65℃
|
|
|
||
|
Certification
|
CE / VDE / UL / ROHS
|
|
|
||
|
Warranty
|
5year
|
|
|
||
|
Weight (KG)
|
1.5KG
|
|
1.81KG
|
||
|
Carton Spec
|
Inner box weight：2.2KG
Inner box size：34*24*9.5cm Carton weight (5PCS):12KG Carton size (5PCS):51*37*26.5cm |
|
Inner box weight：2.5KG
Inner box size:34*24*9.5cm Carton weight (5PCS):13.5KG Carton size (5PCS):51*37*26.5cm |
||
|
Communicationconnection mode
|
WiFi/2.4G
|
|
|
||
|
Indicator lights quantity
|
Working status LED light *1 + Wifi signal led light *1
|
|
|
||
|
Cooling method
|
Natural cooling (no fan)
|
|
|
||
|
Working environment
|
Indoor and outdoor
|
|
|
||
|
Certification standards
|
EN61000-3-2，EN61000-3-3,EN62109-2，EN55032，EN55035,EN50438
|
|
|
||
