ANENG ST181 Digital Clamp Meter DC/AC Current 4000 Counts Multimeter Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm Test
ANENG ST181 Digital Clamp Meter DC/AC Current 4000 Counts Multimeter Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm Test
Couldn't load pickup availability
SPECIFICATIONS
ANENG Model: st181
Brand Name: ANENG
Certification: CE
Choice: yes
DIY Supplies: Electrical
Dimensions: -
Display Type: Digital Only
Hign-concerned Chemical: None
Measuring Capacitance Range: 4nF/40nF/400nF/4UF/400UF/4mF
Measuring Current Range: 40A/400A
Measuring Inductance Range: -
Measuring Resistance Range: 400/4k/40k/400k/4M/40M ohm
Measuring Voltage Range: 400mV/4V/40V/400V/600V
Model Number: ANENG ST181
Operating Temperature: 0-40 temperature
Origin: Mainland China
Weight: 260g
Features:
Can measure AC/DC voltage, AC current, resistance and test continuity.
Manual select measurement function and range.
Overload protection for the whole measurement range.
LCD display with backlight, convenient to operate and read.
Data hold function, low battery indication, auto power off.
Suitable for electrical equipment testing and maintenance.
Specifications:
Model |
ST181 |
Display |
4000 counts |
Range |
Accuracy |
|
AC voltage |
4V/40V/400V/600V |
±(1.5%+3) |
DC voltage |
400mV/4V/40V/400V/600V |
±(1.0%+3) |
Resistance |
400/4k/40k/400k/4M omh |
±(1.2%+3) |
40M omh |
±(1.5%+5) |
|
AC current |
40A/400A |
±(2.5%+3) |
Frequency |
10Hz~400kHz |
±(1.0%+5) |
400kHz~4MHz |
±(2.0%+5) |
|
Capacitance |
1nF~4uF |
±(2.5%+10) |
4uF~400uF |
±(4.0%+20) |
|
4mF |
±(5.0%+30) |
|
Working temperature |
18°C〜28°C |

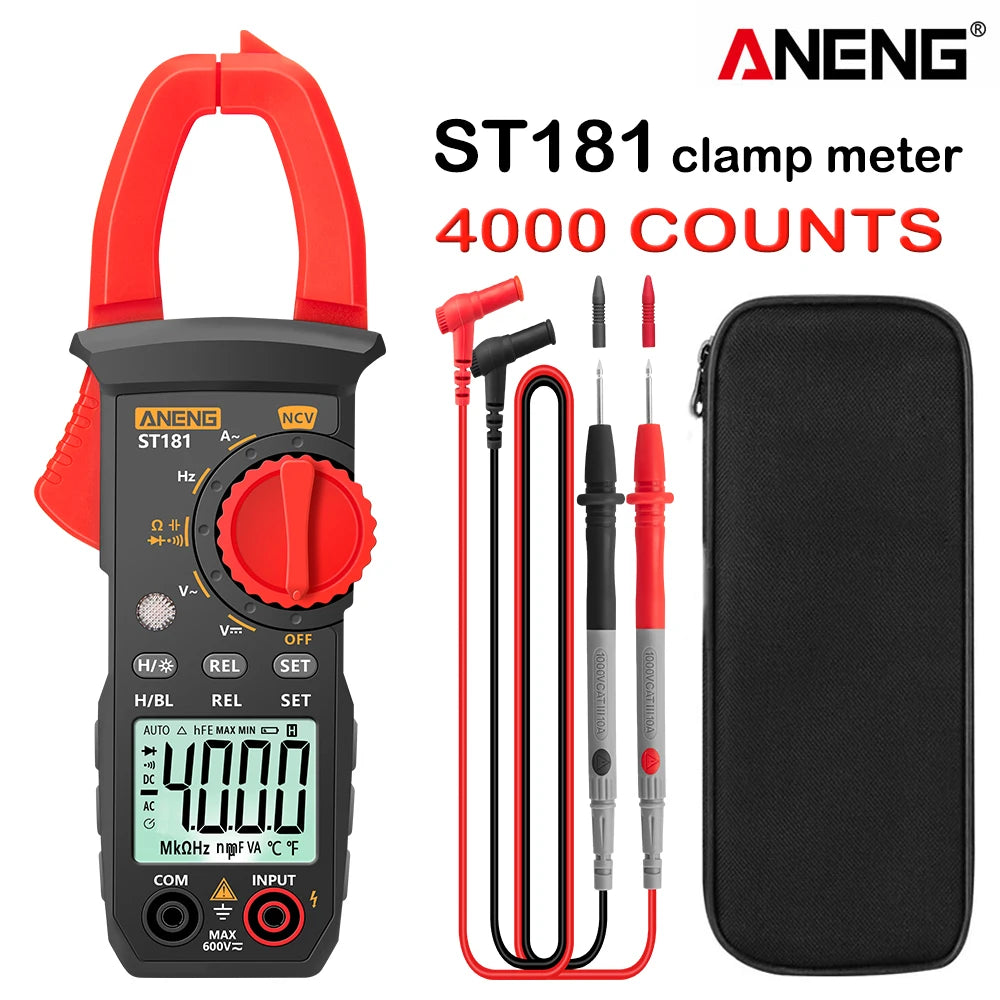

Package List:
1 * ANENG ST181 Clamp Meter
1 * Black Packing Bag
2 * Test Probes
1 * User Manual
