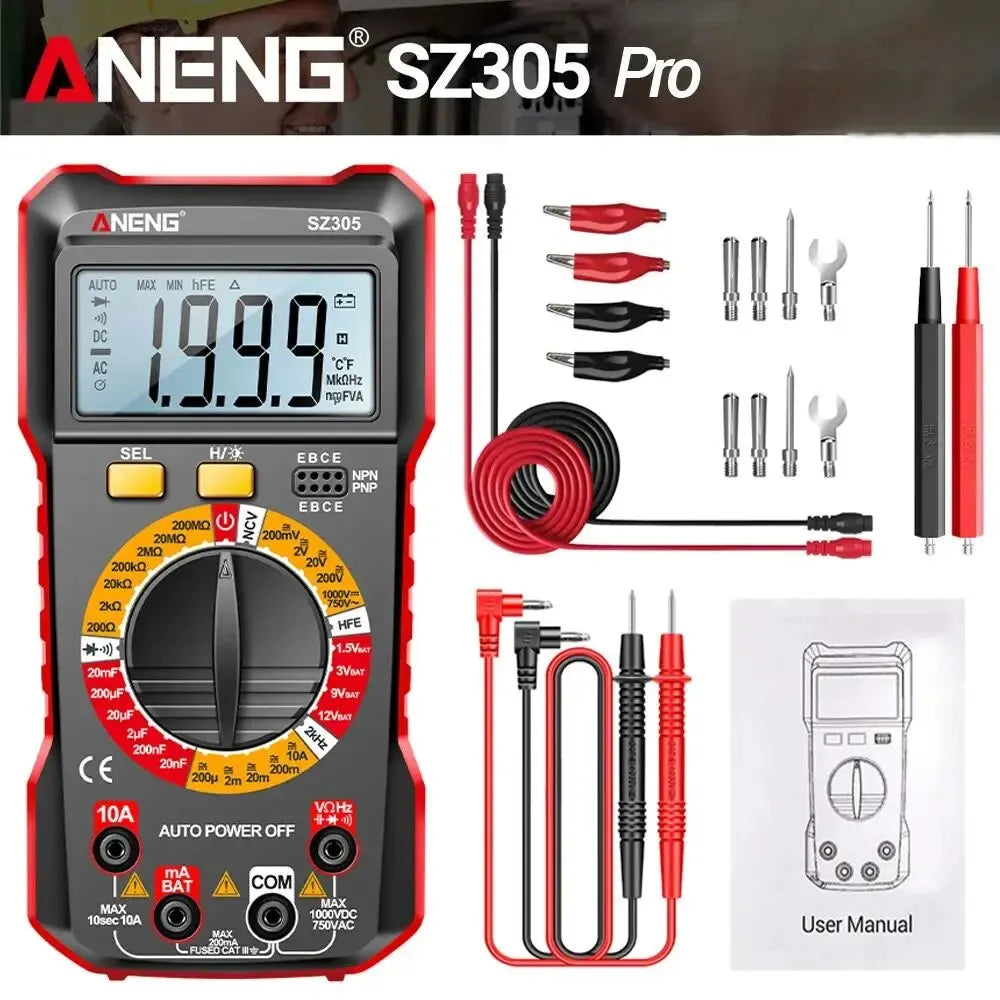

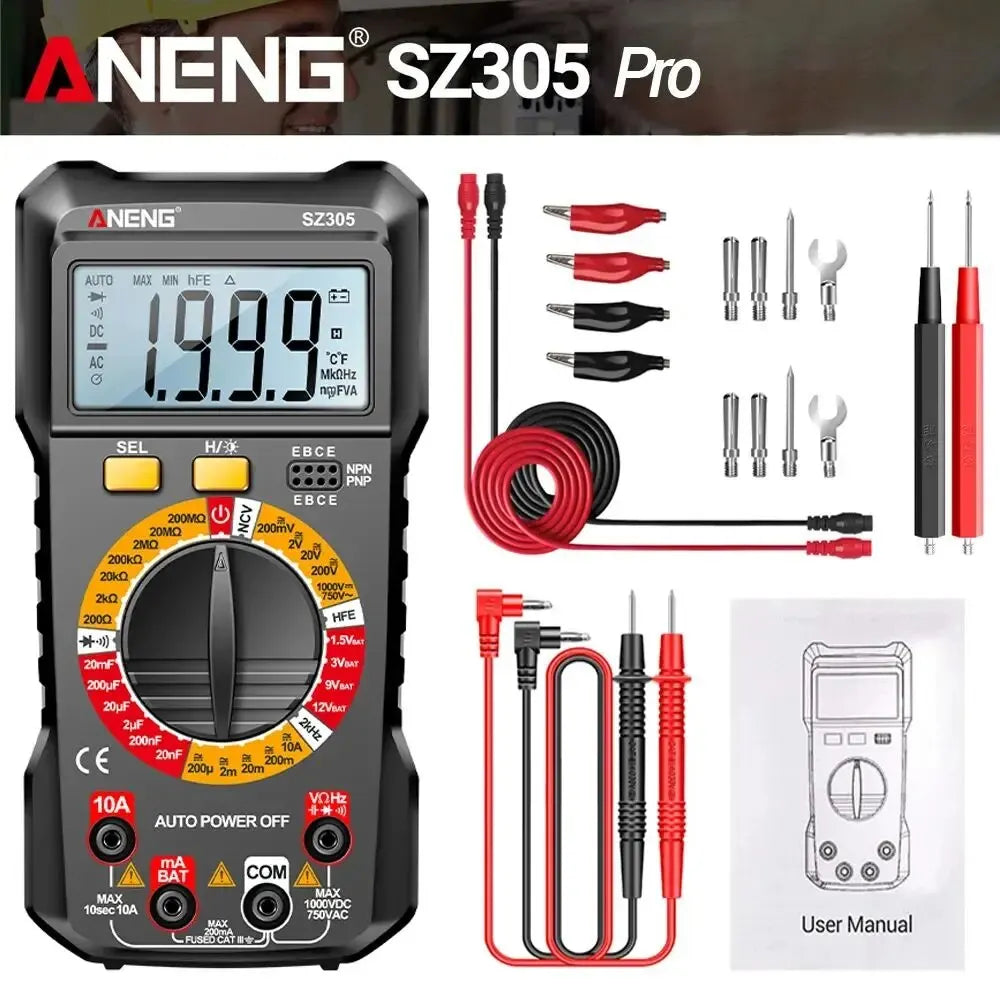

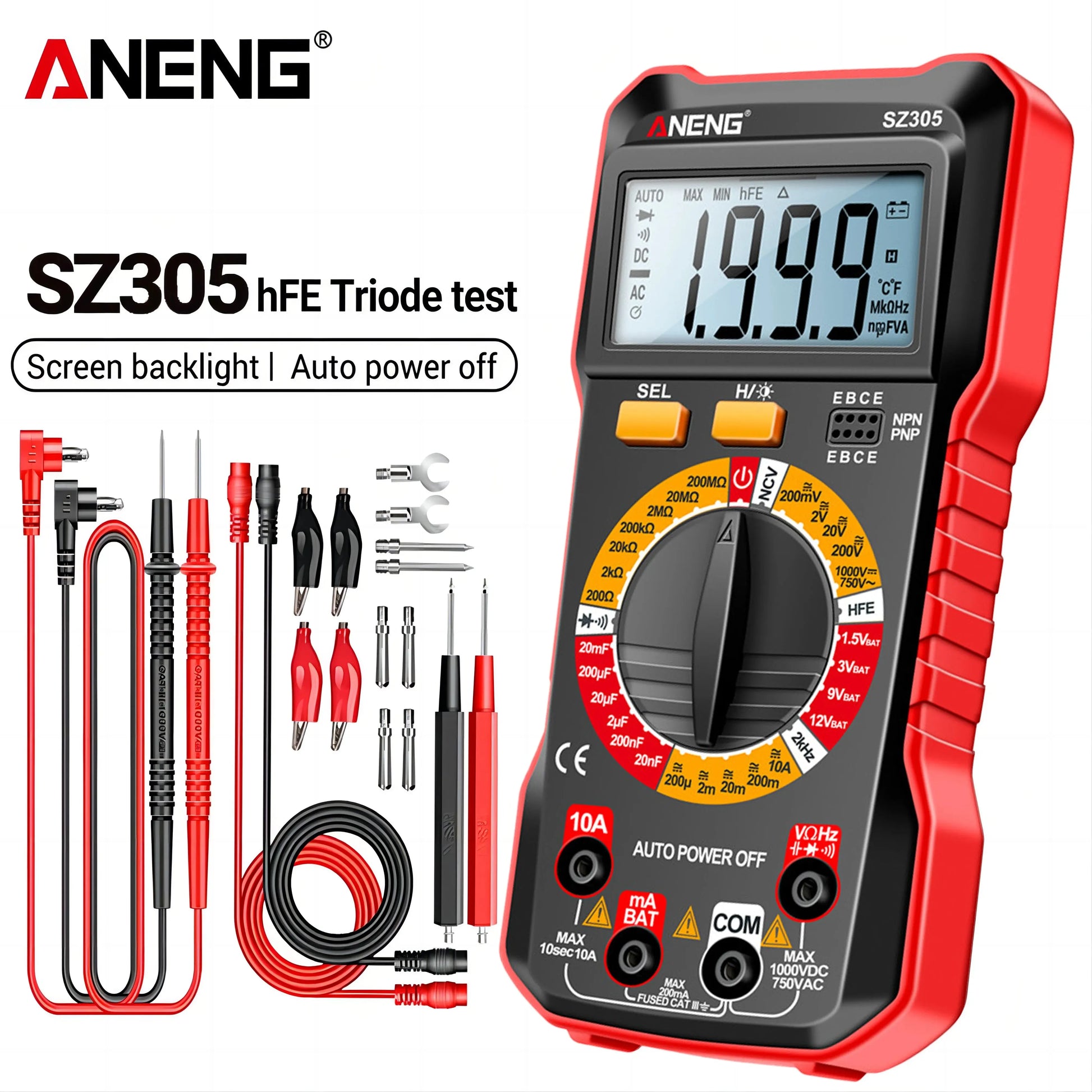

ANENG SZ305 Digital Multimete True RMS Handheld Multifunction High Precision Tester NCV AC/DC Votage Current Resistance Ohm Tool
ANENG SZ305 Digital Multimete True RMS Handheld Multifunction High Precision Tester NCV AC/DC Votage Current Resistance Ohm Tool
Couldn't load pickup availability
SPECIFICATIONS
AC Current: 200uA-10A
AC Voltage: 200mV-750V
ANENG Model: sz305
Brand Name: ANENG
Choice: yes
DC Current: 200uA-10A
DC Voltage: 200mV-1000V
DIY Supplies: Electrical

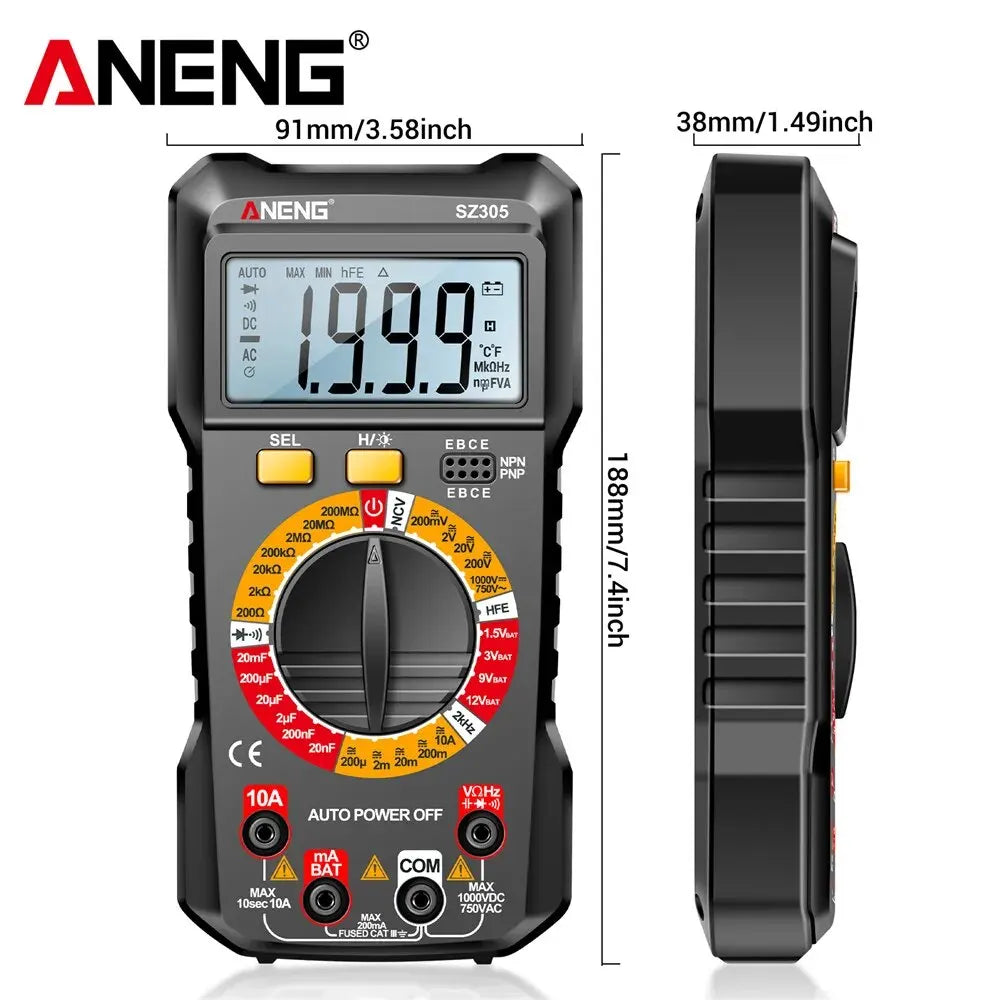

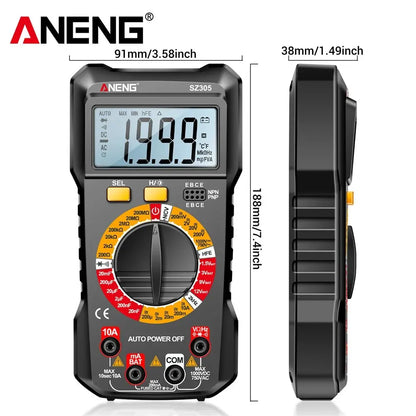

Dimensions: 188x91x38mm
Display Type: Digital Display
Hign-concerned Chemical: None
Is Smart Device: No
Measuring Capacitance Range: 20mF
Measuring Inductance Range: ANENG Digital Multimeter
Measuring Resistance Range: 200 MOhm
Model Number: ANENG SZ305 Multimeter
Operating Mode: Auto/Manual Ranging
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
• True RMS Measurement :The ANENG SZ305 digital multimeter provides true RMS measurement, ensuring accurate readings of voltage, current, and resistance.
• High Precision :With a high precision of 0.01%, the ANENG SZ305 digital multimeter is able to provide precise readings, making it ideal for professional use.
• Multifunctional :The ANENG SZ305 digital multimeter is a versatile tool that can be used for a variety of applications, including AC/DC voltage, current, and resistance measurements.
• Handheld Design :The ANENG SZ305 digital multimeter features a handheld design, making it easy to use and carry around, perfect for on-the-go electrical work.

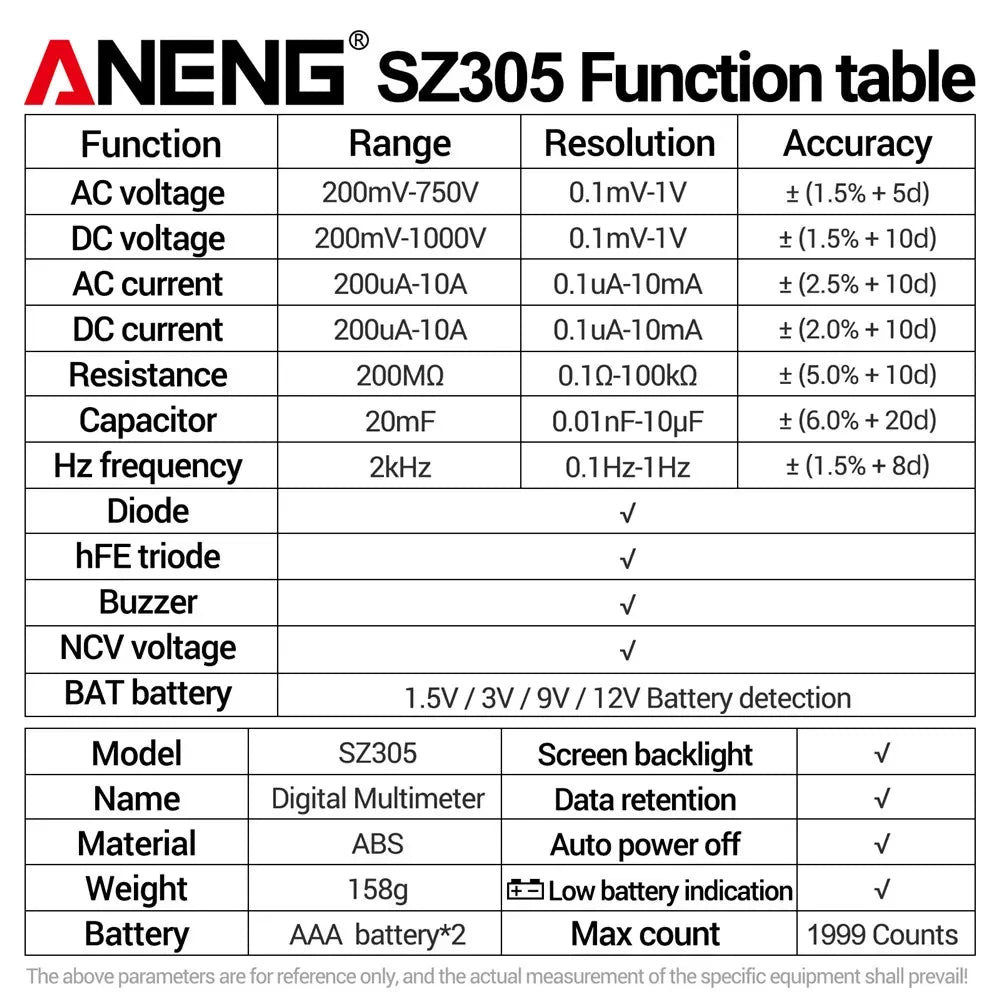

Model:SZ305 | |||
Function |
Range |
Resolution |
Accuracy |

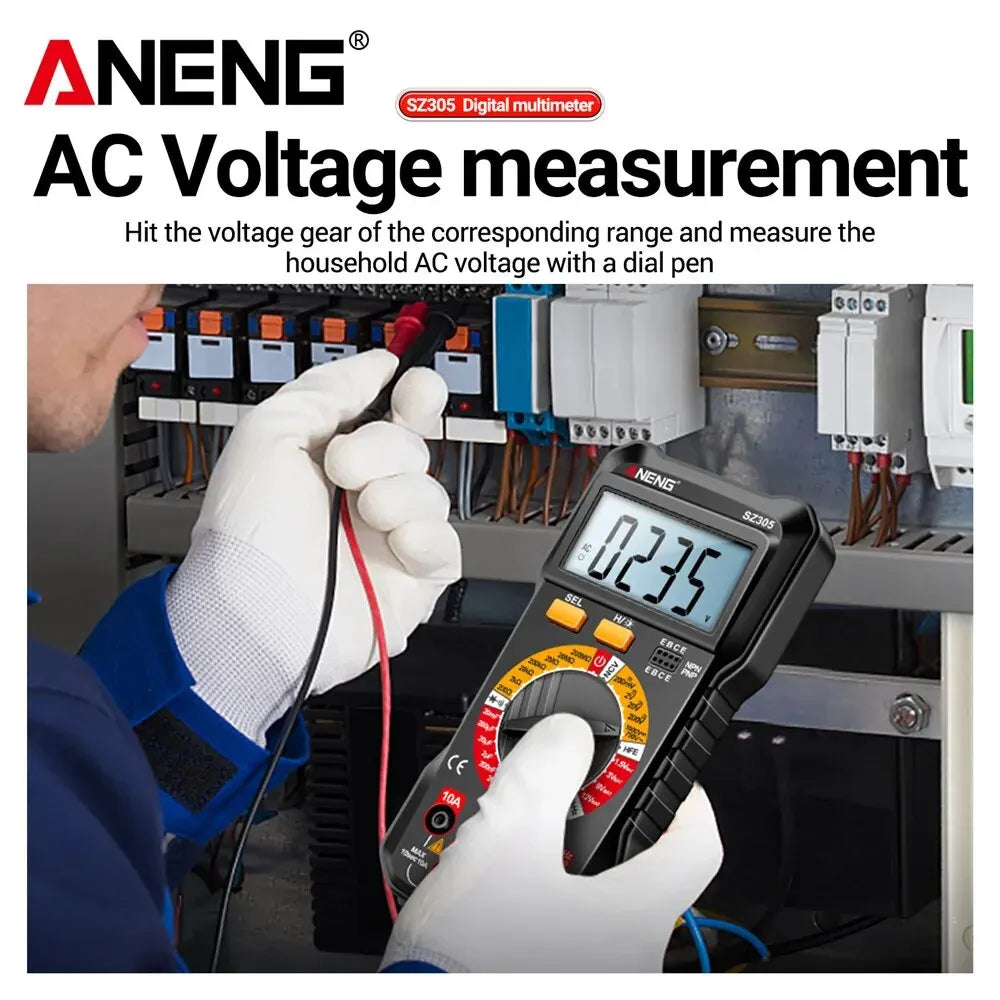

AC voltage |
200mV-750V |
0.1mV-1V |
±(1.5%+5d) |
DC voltage |
200mV-1000V |
0.1mV-1V |
±(1.5%+10d) |
AC current |
200uA-10A |
0.1uA-10mA |
±(2.5%+10d) |
DC current |
200uA-10A |
0.1uA-10mA |
±(2.0%+10d) |
Resistance |
200MΩ |
0.1Ω-100kΩ |
±(5.0%+ 10d) |
Capacitor |
20mF |
0.01nF-10uF |
±(6.0%+ 20d) |
Hz frequency |
2kHz |
0.1Hz-1Hz |
±(1.5%+8d) |
Specifications |
188x91x38mm |
Screen backlight |
√ |
Name |
Digital Multimeter |
Data retention |
√ |
Material |
ABS |
Car Power off |
√ |
Weight |
158g |
Low battery indication |
√ |
Battery |
AAA battery*2 |
Max count |
1999 Counts |
Diode |
√ |
||
HFE triode |
√ |
||
Buzzer |
√ |
||
NCV voltage |
√ |
||
BAT battery |

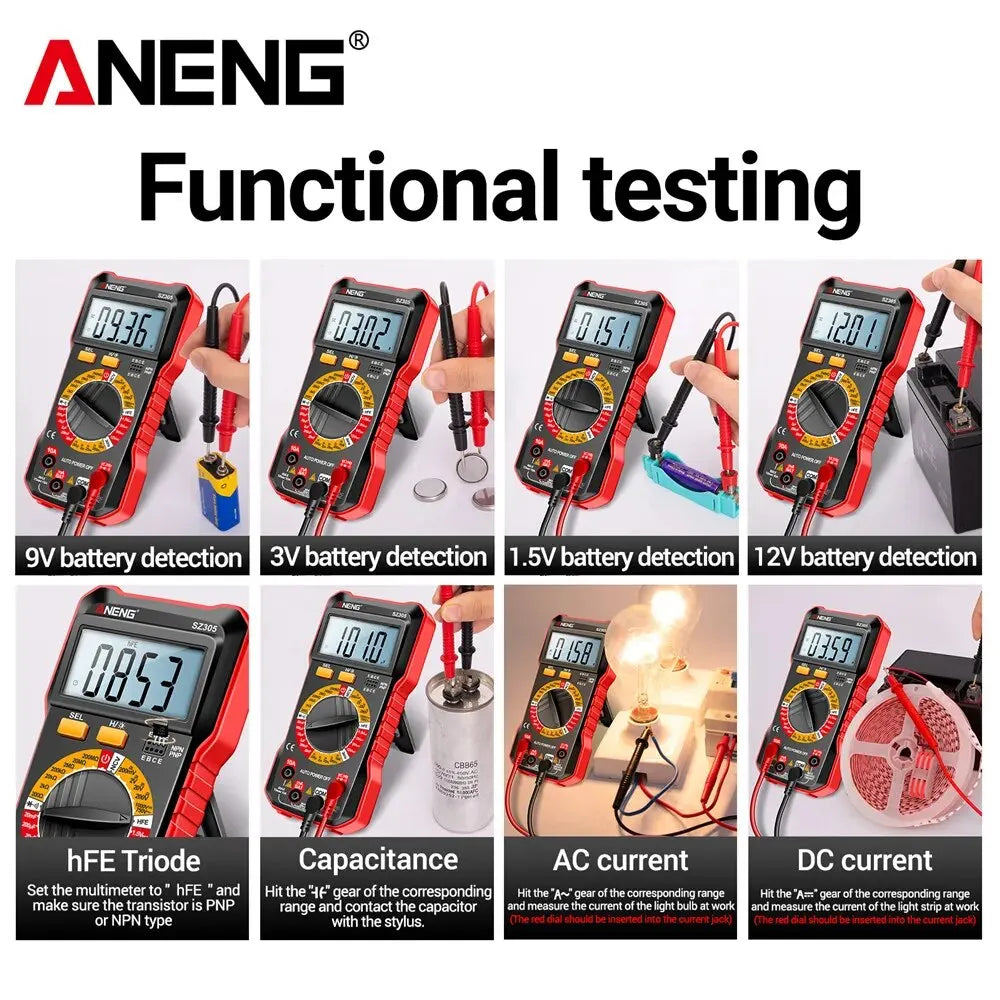

1.5V / 3V / 9V /12V Battery detection |
||
1x Outer packing Box(according to the choice)
